C-TEC EP Extinguisher Release Economy Remote Status Unit, Single Gang (EP211)
SKU
EP211
£95.88
£79.90
C-TEC EP Extinguisher Release Economy Remote Status Unit, Single Gang (EP211)
- Buy 10 for £92.20 £76.83 each and save 4%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for C-TEC EP Extinguisher Release Economy Remote Status Unit, Single Gang (EP211)

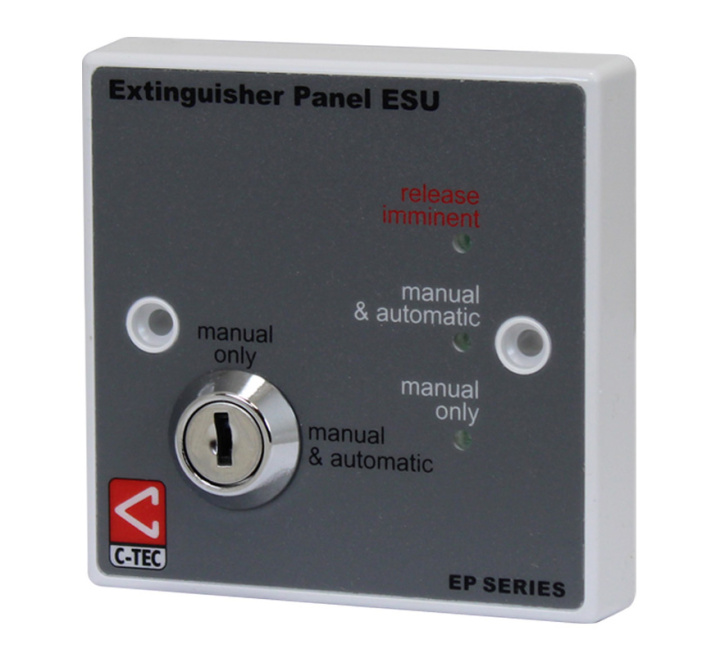

The C-TEC EP211 Economy Status Unit (ESU) connects to the EP203 Automatic Extinguisher Panel and provides remote indication of extinguishant “release imminent” with a mode select switch (Manual Only or Manual & Automatic).
Key Features of the EP211 |
|---|
|
> Designed to connect to the EP203 Automatic Extinguisher Panel to provide remote system status indication via three LEDs
> Includes a mode (auto/manual) keyswitch > Mounts on a standard UK single gang 25mm flush or surface back box > Max. 8 economy status units per EP203 panel |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | EP211 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for C-TEC EP Extinguisher Release Economy Remote Status Unit, Single Gang (EP211)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC EP Extinguisher Release Economy Remote Status Unit, Single Gang (EP211)
| Power requirements | 21-28VDC (100mA electronic fuse). |
| Quiescent current | 5mA. |
| Auxiliary inputs | None. |
| Indicators | Release Imminent; Manual/Automatic operation; Manual Only operation. |
| Controls | Operation keyswitch (Manual only or Manual & Auto). |
| Product dimensions (mm) | 87 W x 87 H x 35 D mm. Can be mounted on a standard UK 25mm single gang flush or surface back box. |
| Construction & finish | Plastic. |
| IP Rating | IP40. |
| Weight | 86g |
| Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
| Network specification | Max. 8 EP211's per EP203 panel. Four wire connection (2 power, 2 data); Daisy-chain wiring. A 6K8 end of line resistor must be connected across the terminals of the last EP211 in the chain. |
