Eaton VoCALL 5 EVCS Analogue 5 Line Master Control Panel (EFVCC5)
Product Details for Eaton VoCALL 5 EVCS Analogue 5 Line Master Control Panel (EFVCC5)

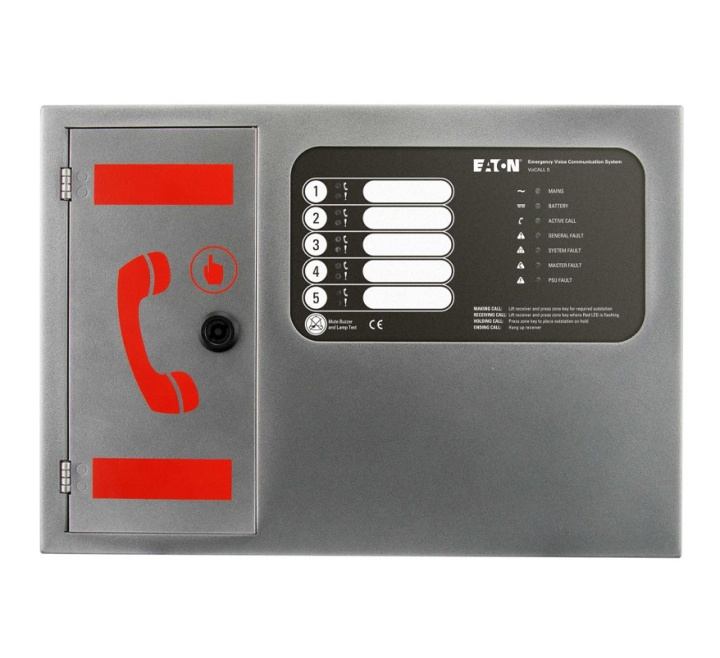

The VoCALL 5 (EFVCC5) is ideal for smaller installations which require up to 5 outstations or Emergency Assist Alarms.
The system comprises the Compact 5 line unit which controls up to 5 outstations (Type A, Type B, Emergency Assist Alarms or in Far and Middle East applications jack plates).
The EFVCC5 is a standalone unit containing the systems master handset, power supply and connectivity for the 5 outstations. 20mm knockouts are provided for all system cabling and the housing is of ample size to support 2x 5Ah backup batteries (not supplied).
The unit is microprocessor controlled, but requires no on site programming; it is fitted with end of line resistors which are simply discarded when an outstation is connected making installation quick and simple.
Key Features of the EFVCC5 |
|---|
|
> BS5839 part 9 compliant
> Monitored handset > Controls up to 5 outstations > 5 line keys, 1 fault accept > 17 status LEDs > Surface mount panel or optional stainless steel flush mount cover > Relay outputs > Simple cabling, outstations connect directly into the master using 2 core radial fire rated cables > In addition to Type A and Type B outstations the VoCALL 5 can also monitor Emergency Assist Alarms, and Jack type outstations for relevant regions > No programming required. The panel is fitted with end of line resistors which are discarded when an outstation or Emergency Assist Alarm is connected |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | EFVCC5 |
FAQ’s for Eaton VoCALL 5 EVCS Analogue 5 Line Master Control Panel (EFVCC5)
Product Specification for Eaton VoCALL 5 EVCS Analogue 5 Line Master Control Panel (EFVCC5)
| Product: | Eaton VoCALL 5, 5 lines |
| Catalogue no.: | EFVCC5 |
| Dimensions: | W:397mm x H:280mm x L/D:77mm |
| Compliance: | BS5839-9 |
| EN Certification standards: | EN54 Pt4 (Power Supply Equipment) |
| Integrated function: | Integrated Dial Device Emergency Power Supply Integrated |
| Voltage: | 230Vac +/- 10% 50/60 Hz |
| Internal power supply: | 24V dc |
| Supply and battery: | Monitored, open, short, fuses |
| Protection: | Deep discharge, short, thermal |
| Battery size and type: | 2 x 12V VRSLA 5Ah |
| Mains fuse: | 240V 2A HRC |
| Battery fuse: | 1A PTC |
| Charge current: | 250mA (max) |
| No. of lines: | 5 |
| Remote enable: | Short to use |
| No. of outputs: | 2 (fault & in-use) |
| Output type: | Volt free relay |
| Output contact: | 30V dc 1A |
| Buttons: | 5 zone keys, 1 mute buzzer |
| Zone LEDs (x5) | 1 line status, 1 fault status per zone |
| Supply LED: | AC & DC |
| Fault LEDs: | 4 (General, System, Master, PSU) |
| Outstation cable type: | Fire rated (some installations will require enhanced cabling, see local regs for guidance) |
| Outstation cable cores: | 2 Core (1mm or 1.5mm) |
| Outstation cable distance: | 300m |
| Mounting: | Surface |
| Cable entries: | Top: 7 x cable knockouts (20mm) |
| External interface: | Relays |
| Type of circuit: | Radial |
| Type of display: | LCD |
| Mounting method: | Surface, Wall |
| Main input supply: | 230 Vac, 50 Hz |
| Auxiliary relays: | Not applicable |
| Communications type: | Analogue |
| Cable entry location: | Top, Rear |
| IP Rating: | IP20 |
| Construction: | PC |
| Warranty: | 3 year |
| Weight: |
6.5 kg |
