Eaton VoCALL Analogue Type B Disabled Refuge Outstation (Stainless Steel, Surface Mount) (CFVCSHFSS)
SKU
CFVCSHFSS
£371.08
£309.23
Eaton VoCALL Analogue Type B Disabled Refuge Outstation (Stainless Steel, Surface Mount) (CFVCSHFSS)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton VoCALL Analogue Type B Disabled Refuge Outstation (Stainless Steel, Surface Mount) (CFVCSHFSS)

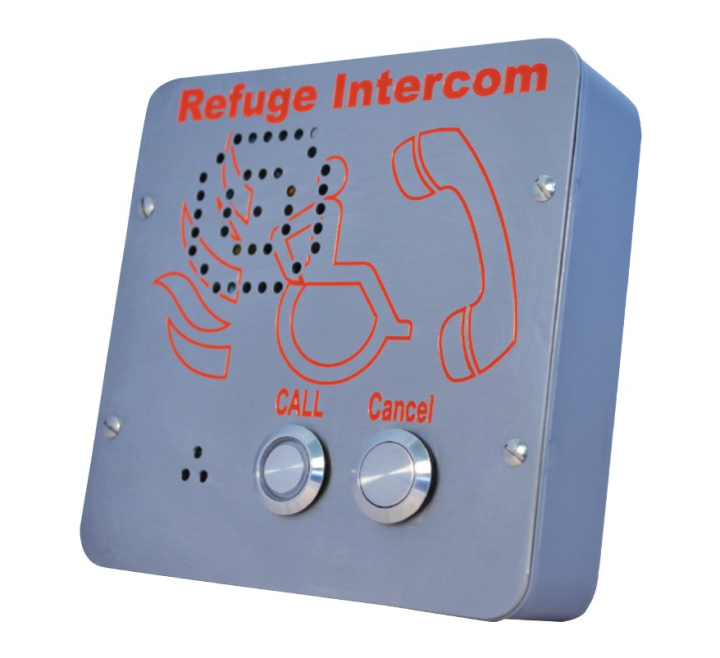

The VoCALL CFVCSHFSS Type B outstations, used with analogue VoCALL emergency voice communication (EVC) systems, are designed to be versatile, compact and easy to use.
The outstation is available as both flush (via a separate bezel) or surface mounted with green, red or stainless steel finishes. All feature a high-volume ringer, status LED and tactile braille signage.
Key Features of the CFVCSHFSS |
|---|
|
> Eaton Type B Outstation
> Stainless steel > Surface Mount > Compact design > High volume ringer > Status LED > 20mm cable glands > Loop output for hearing impaired users > Tactile Braille signage > Full duplex operation > Flush bezel mounting available > Versatility, the unit can be used on all VoCALL systems > Full duplex operation, allowing 2 way voice communication > Tactile Braille signage to assist partially sighted people to easily operate |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CFVCSHFSS |
Write Your Own Review
FAQ’s for Eaton VoCALL Analogue Type B Disabled Refuge Outstation (Stainless Steel, Surface Mount) (CFVCSHFSS)
No questions yet. Be the first to ask the question!
Product Specification for Eaton VoCALL Analogue Type B Disabled Refuge Outstation (Stainless Steel, Surface Mount) (CFVCSHFSS)
| Product: | Eaton Type B Outstation |
| Catalogue no.: | CFVCSHFSS |
| Dimensions: | W:135mm x H:135mm x L/D:42mm |
| Integrated function: | Emergency Power Supply Integrated |
| Outstation cable type: |
Fire rated (some installations will require enhanced cabling) |
| Cable core size: | 2 core 1mm or 1.5mm |
| Cable entry location: |
Top, Rear, Bottom |
| Outstation cable distance: | 500m |
| Status LEDs: | 2 off red (flashing for location lights, solid in use) |
| Call button: | Press to call button |
| Cancel button: | Press to cancel button |
| Operating temperature: | -5oC to +40oC |
| Operating voltage: |
24V |
| Material: | Zintec, Powder coated |
| Colour: | Stainless steel |
| Mounting: | Surface |
| Mounting height: |
1000mm from the finished floor level to the centre point of the unit |
| Clearance: | When units are used as refuge call points, suitable space for a wheelchair user must be allowed |
| Door type: | Magnetic push catch door |
| Compatible with: |
All VoCALL systems for use as a standard fire telephone or disabled refuge call point |
| Warranty: | 3 year |
| Weight: |
1.2 kg |
