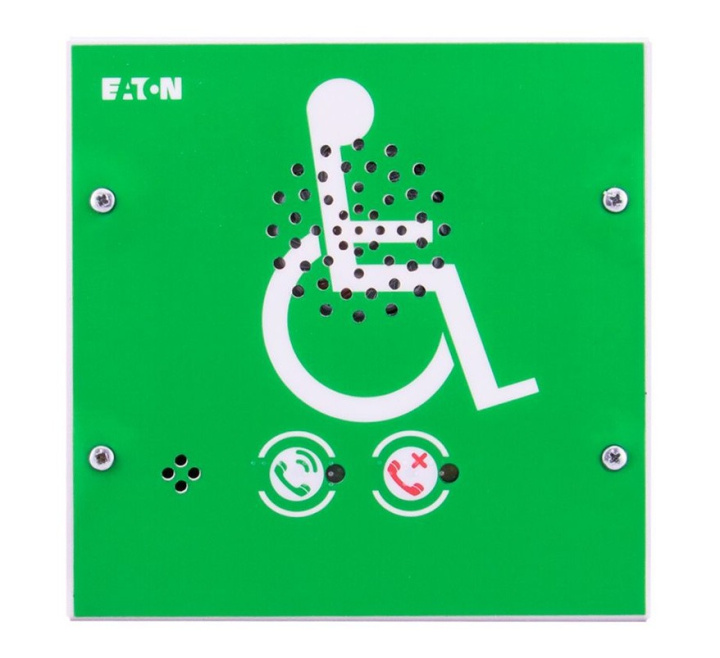

Eaton VoCALL 16 Digital Type B Outstation (Green, Surface Mount) (TB16-GS)
Product Details for Eaton VoCALL 16 Digital Type B Outstation (Green, Surface Mount) (TB16-GS)
The VoCALL TB16-GS Type B digital outstation is designed to be versatile, compact and easy to use. These units are available as both flush or surface mounted. They have a high volume ringer, status LED and tactile Braille signage. They are compatible with all VoCALL digital systems.
Usually the interface between the refuge point and the main panel, Type B outstations are designed to be used in a fire situation and therefore should always be wired in fire-resistant cable (please check local installation codes for cable type).
Type B outstations should only be used where the background noise is below 40dBA (therefore there should be no sounder or voice alarm coverage in the area). For disabled refuges Type A or Type B outstations can be used.
Key Features of the TB16-GS |
|---|
|
> Compact design
> High volume ringer > Status LED > 20mm cable glands > Loop output for hearing-impaired users > Tactile Braille signage > Full duplex operation for 2-way voice communication > Flush bezel mounting available |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | TB16-GS |
| Colour | Green |
FAQ’s for Eaton VoCALL 16 Digital Type B Outstation (Green, Surface Mount) (TB16-GS)
Product Specification for Eaton VoCALL 16 Digital Type B Outstation (Green, Surface Mount) (TB16-GS)
| Product: | Eaton Type B Outstation for MX16 / NX16 |
| Catalogue no.: | TB16-GS |
| Dimensions: | W:132mm x H:132mm x D:57mm |
| Integrated function: | Addressable Emergency Power Supply integrated |
| Cable entry: | Top, Rear, Bottom |
| Colour: | Green |
| Power consumption: |
0.65W |
| Mounting: | Surface |
| Warranty: | 3 years |
| Weight: |
0.6 kg |
