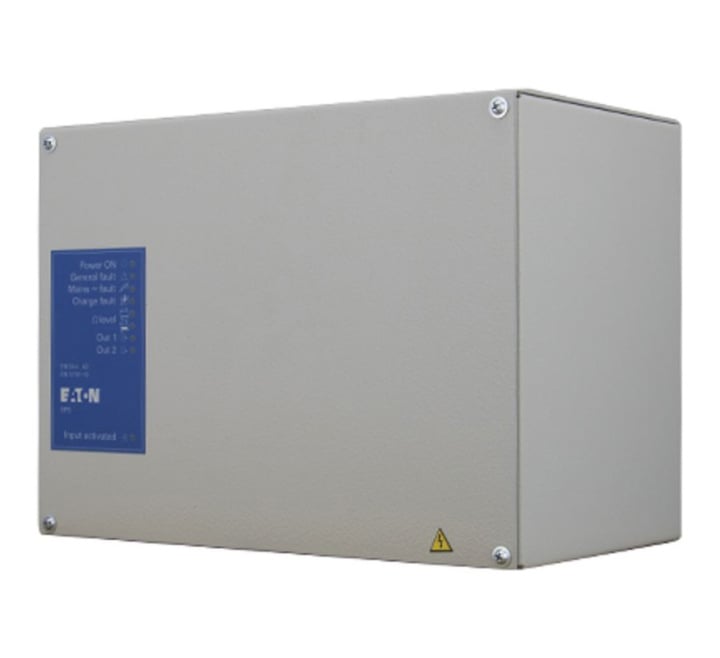

Eaton 24V 2.5A EN54 Universal Power Supply (SPS-2433)
SKU
SPS-2433
£276.35
£230.29
Eaton 24V 2.5A EN54 Universal Power Supply (SPS-2433)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton 24V 2.5A EN54 Universal Power Supply (SPS-2433)
The Eaton SPS range of EN54-4 certified safety power supplies offer a compact, robust and versatile power solution to installers, allowing them to safely power fire detection and signalling systems in small to large installations.
The compact and discrete design provides added flexibility for the power supplies to be installed in public places. Comprehensive yet simple LED status indicators on the front of the unit help installers, commissioners and maintainers assess the status of the unit.
Key Features of the SPS-2433 |
|---|
|
> Compact design
> High useable current output > Robust and resilient > Clear LED status indicators > Easy to install and doesn’t take up valuable space in a building > Reduced number of power supplies installed in a system > Product reliability and suitability for a variety of environments > Assess status and capacity of unit efficiently > EN54-4 certified > Batteries not supplied |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | SPS-2433 |
| Primary Power Source | Mains Powered (230V) |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for Eaton 24V 2.5A EN54 Universal Power Supply (SPS-2433)
No questions yet. Be the first to ask the question!
Product Specification for Eaton 24V 2.5A EN54 Universal Power Supply (SPS-2433)
| Product: | Eaton Safety Power Supply |
| Catalogue no.: | SPS-2433 |
| Dimensions: | W:300mm x H:220mm x D:175mm |
| Output current (max): |
2.5 |
| Output voltage: |
27.5 |
| Mains voltage: |
230 ~50 Hz |
| No. of protected outputs: | 2 |
| Battery capacity: | 7Ah |
| Transition time mains to battery: | Instant |
| Door lock method: | Screws |
| Charger fault relay: | 1A/24V (NO/NC) |
| Battery resistor selector (switch): | Yes |
| Remote temperature probe: | Yes |
| Operating temperature: | -5oC to +40oC |
| IP rating: | IP30 |
