Eaton VoCALL 16 Digital EVCS 16 Line Network Panel (NX16)
Product Details for Eaton VoCALL 16 Digital EVCS 16 Line Network Panel (NX16)

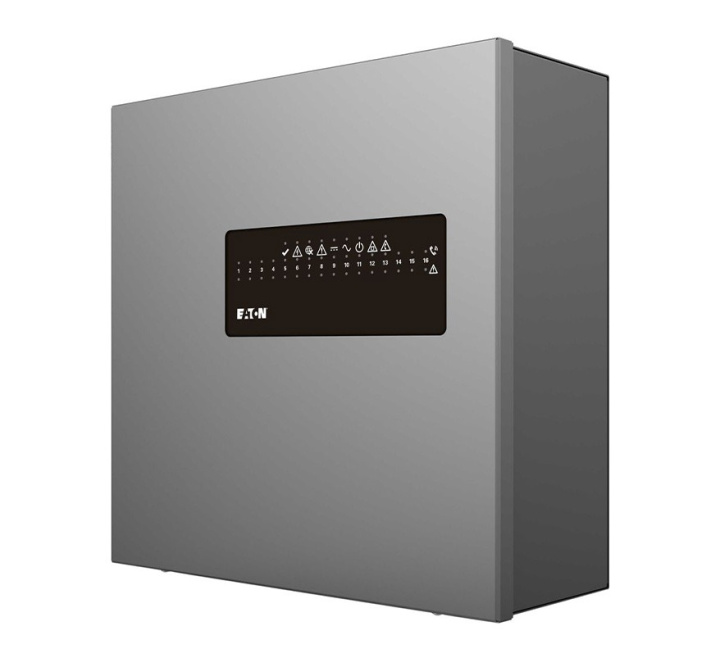

The Eaton NX16 is a 16 Line Network Panel designed for use with the VoCALL Network. If you're looking for an emergency voice communication system for a large project, such as a high rise building, or if future expansion is a key concern, VoCALL 16 gives you that added flexibility. By connecting one or more network panels (NX) to a main panel (MX) you can increase reach of the system to suit your requirements.
The VoCALL 16 is a high specification, digital, loop driven, intelligent Emergency Voice Communication System, offering sophisticated functionality along with a simple and intuitive end user interface.
This network* version enables a system installation of up to 32 main panels (MX) and network panels (NX) in any combination (a minimum of 1 MX is required). With a maximum of 16 outstations per panel, a total system size of 512 outstations is possible, all connected and communicating via isolated fault tolerant loops.
The system also uses digital audio communication to achieve high audio quality and intelligibility when it matters the most. The use of isolated loops also reduces labour and material cost along with potential for wiring errors associated with traditional spur systems.
VoCALL16 is designed to ensure the simplicity of future expansion. Continuous fault monitoring and reporting ensures high availability. Extensive time stamped logs ensure ease of debugging and recording for compliance.
Key Features of the NX16 |
|---|
|
> Network capacity of 512 outstations
> Up to 32 panels (main/network) in a loop > Up to 16 digital outstations per panel > 4 core loop configuration (2 for power, 2 for data) > Simple to design network > At least one main panel is required > Any combination of panels (MX/NX) possible > Any combination of outstations possible > Centrally controlled by a main panel > Easy to install and operate > Automatic soft addressing of panels and outstations > PC based application for configuration > Complex call routing is possible > Extensive time stamped logs on SD card > Large graphical user interface > PIN protected user access > Fully compliant with BS5839-9 > Fault tolerant loop wired design > Simple drop in replacement of device possible, if needed > Simple configuration, faster commissioning > Easy maintenance and extensive logging > Superior audio quality > Simple and intuitive operation > Centrally controlled network architecture > Full range of compatible outstations > Appealing look with flush mount options > Quick and simple identification of device in use > Secure access for standard users |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | NX16 |
FAQ’s for Eaton VoCALL 16 Digital EVCS 16 Line Network Panel (NX16)
Product Specification for Eaton VoCALL 16 Digital EVCS 16 Line Network Panel (NX16)
| Product: | Eaton VoCALL 16 Line Master Panel, Network |
| Catalogue no.: | NX16 |
| Dimensions: | W:355mm x H:355mm x L/D:145mm |
| Main input supply: | 230V AC, 50 Hz |
| Suitable for: | Bus connection |
| EN Certification standards: | EN54 Pt4 (Power Supply Equipment) |
| Fitted with: | Power Adaptor |
| Low voltage directive: | EN62368-1:2014 |
| External connection ports: | RJ45 |
| Communications type: | Digital |
| Colour: | Grey |
| Construction: | Mild steel |
| Type of display: | LCD |
| British Standard compliance: | BS5839-9 |
| Networkable: | Yes |
| IP rating: | IP20 |
| Integrated function: | Addressable Interface External Emergency Power Supply Integrated |
| External interface: | Relays |
| Type of circuit: | Loop |
| Power consumption: |
2.7W |
| Current consumption @ 24V: |
Secondary source - battery back-up. Batteries not supplied. 2 x Yuasa 12Ah 12V battery (recommended) |
| Cable entry location: |
Top, Rear |
| Operating temperature: | -5oC to +40oC |
| Mounting: | Surface |
| Warranty: | 3 year |
| Weight: |
5.5 kg (without batteries) |
