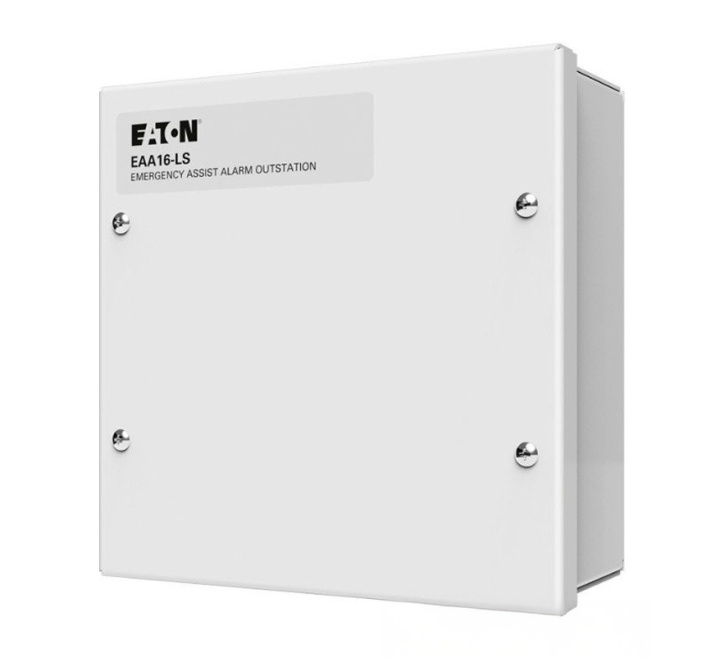

Eaton VoCALL 16 Digital Emergency Assist Alarm Outstation (EAA16-LS)

The VoCALL Digital EAA interface enables you to easily connect your VoCALL 16 panel to your Emergency Alarm Assist (EAA) kit. Using Eaton's popular CFEAPULLKIT, the system is powered locally and is easily extendable with it being possible to add up to 16 EAA units to the loop.

1. The Ceiling Pull should be positioned so that its readily accessible from the WC or bath (where applicable).
2. The cancel button should be positioned so that it is reachable from the WC and a wheelchair.
3. The upper cord pull should be located between 800mm & 1000mm above floor level. The lower cord pull should be exactly 100mm above the floor level (remove excess cord).
4. A reassurance sounder/indicator (not included) can be added along with visual notification sticker (included with the EAA interface)
5. The over door indicator provides an audible and visual signal to indicate the area where assistance is required.
6. The VoCALL 16 EAA interface (EAA16-LS) is connected to the VoCALL 16 panel and the power supply
7. The power supply is situated in the corridor and supplied via a switched fuse spur.
8. The VoCALL 16 digital emergency voice communication panel is available as flush or surface mount.
