Eaton Intelligent Duct Mounting Probe for Detectors (MDP201)
SKU
MDP201
£271.09
£225.91
Eaton Intelligent Duct Mounting Probe for Detectors (MDP201)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton Intelligent Duct Mounting Probe for Detectors (MDP201)

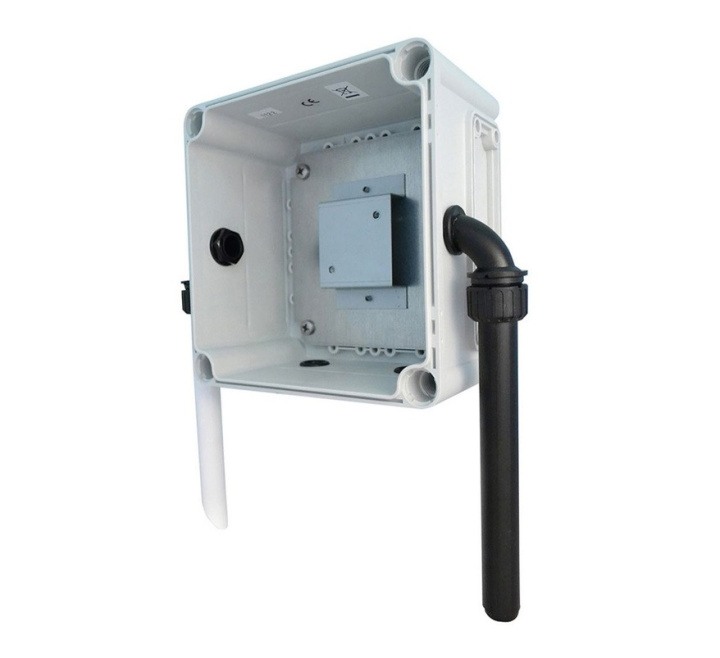

The MDP201 air duct mounting probe unit enables Eaton's range of addressable, conventional and two-wire fire alarm system smoke detectors to be installed in heat, air conditioning and ventilation (HVAC) ducts.
Presence of smoke in the HVAC ducts is detected by sampling the airflow through the duct via two sampling tables. Inside the probe, a detector and base are mounted within a sampling chamber. The probe should be installed on the external skin of the duct, with sample and exhaust probes passing into the duct, in an area of low turbulence.
The unit requires an addressable, conventional or two-wire smoke detector and corresponding base to be complete.
Key Features of the MDP201 |
|---|
|
> Designed for use with Eaton’s range of addressable & conventional optical smoke sensors/detectors
> Requires analogue optical sensor or conventional optical detector and corresponding base (sold separately) > Supplied with full fixing instructions |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | MDP201 |
| System Type | Addressable/Conventional |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Intelligent Duct Mounting Probe for Detectors (MDP201)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Intelligent Duct Mounting Probe for Detectors (MDP201)
| Product: | Eaton Duct Mounting Probe for Detector |
| Catalogue no.: | MDP201 |
| Duct width range: |
300mm - 1500mm 5 to 50 metres |
| Duct air speed range: |
1m/s to 20m/s Detector +/- 0.8o Prism +/- 0.5o |
| Operating temperature: | -20oC to +60oC |
| IP rating: | IP67 |
