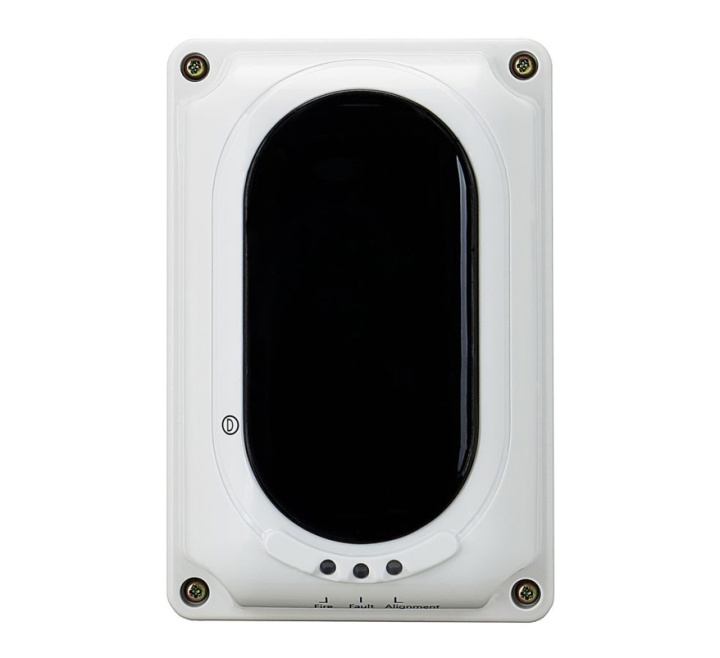

Eaton Conventional Reflective Optical Beam Detector (EF-CBD130)
Product Details for Eaton Conventional Reflective Optical Beam Detector (EF-CBD130)
The Eaton EF-CBD130 reflective beam detector is for use with the Eaton range of conventional fire systems. Alignment is made easy with a built in laser pointer and digital display.
The laser pointer is used to mark the exact location where the reflector is to be installed. Once the reflector is installed the digital display indicates the light intensity between the detector and the reflector enabling the user to adjust for optimal alignment
The EF-CBD130 has four adjustable operational ranges of between 8 to 20, 20 to 40, 40 to 70 and 70 to 100 meters beside with three adjustable sensitivity setting ranges from 2.6dB, 3.8dB and 5.8dB to meet the specific environmental requirement. The EF-CBD130 works on the principle of reflective infrared beam obscuration. Used in conjunction with a reflector, it will notify the fire alarm panel when the infrared beam is obscured by smoke.
The EF-CBD130 is ideal for use high ceiling and wide areas such as warehouses, large stores, shopping malls, leisure centres, exhibition halls, hotel lobbies, printing houses, garment factories, museums and prisons, as well as places where slight smoke particles or corrosive gas exist.
Key Features of the EF-CBD130 |
|---|
|
> EN54-12 Compliance
> Intuitive alignment with built-in laser pointer and digital display > Employ single-ended design through reflector > Four ranges wide monitoring from 8-100 meters via encoder > Three users programming sensitivity adjustment > Built-in microprocessor > Self-diagnosis function can monitor for internal faults > Automatic compensation for factors weakening received signals, such as dust contamination, positional movement and ageing of the transmitter > Fire and Fault interfacing relays > Aesthetically pleasing |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | EF-CBD130 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | IR Optical Beam |
| Detectable Medium | Smoke |
| Colour | White |
| Warranty | 1 Year |
FAQ’s for Eaton Conventional Reflective Optical Beam Detector (EF-CBD130)
Product Specification for Eaton Conventional Reflective Optical Beam Detector (EF-CBD130)
| Operating Voltage | 20 V to 28 V DC |
| Current Parameters | Standby: 23mA Commission: 56mA Alarm: 33mA |
| Beam Sensor Sensitivity [via Encoder] | Level 1: 2.6 dB High Sensitivity Level 2: 3.8 dB Medium Sensitivity Level 3: 5.8 dB Low Sensitivity |
| Beam Pathway Length [via Encoder] | Span 1: 8 to 20 meters Limited Path Span 2: 20 to 40 meters Short Path Span 3: 40 to 70 meters Normal Path Span 4: 70 to 100 meters Long Path |
| Beam Path Angle | ±0.4º Directional (This data takes the average of the left and right deflection angles.) |
| Alignment Guide | Laser Beam Pointer |
| Digital Display Guide | Nixie Tube |
| LED Indicator Guide | Red: Fire ; Yellow: Fault ; Green: Alignment |
| Reset Time | Less than 2 Second |
| Relay Capacity [Fire & Fault] | Normally Open & Close/ 2.0 A; 30 VDC |
| Material / Colour | ABS / White |
| Dimension / Weight | L:190.87 x W:126.87 x H:91.96 mm / 440 gm |
| Weight | 0.130 Kg with base |
| Operating Temperature | -10°C to +50°C |
| Ingress Protection Rating | IP30 [IP66 glue seal - For permanent fixing, Not EN54-12 approved] |
| Humidity | 0 to 95% Relative Humidity, Non condensing |
