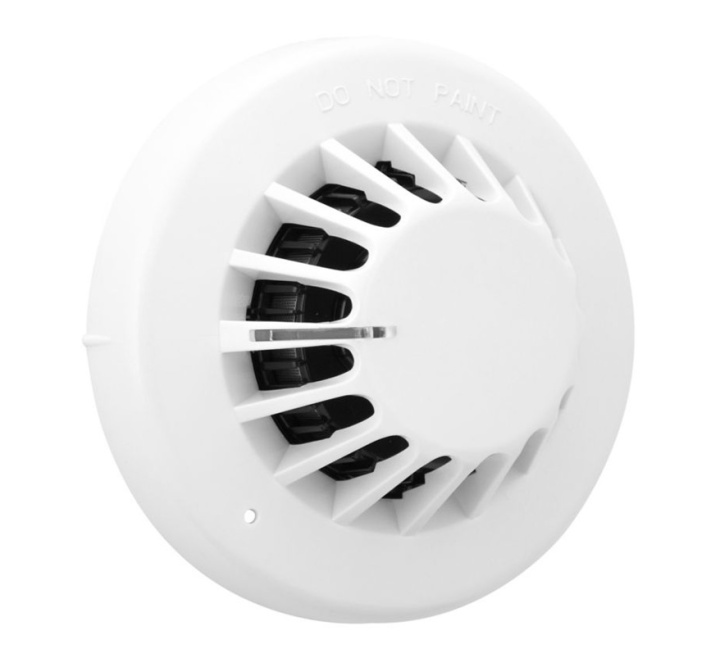

Eaton Conventional Photo-Thermal Multisensor Detector (EFXN632)
SKU
EFXN632
£18.76
£15.63
Eaton Conventional Photo-Thermal Multisensor Detector (EFXN632)
- Buy 10 for £18.31 £15.26 each and save 2%
In Stock
Product Details for Eaton Conventional Photo-Thermal Multisensor Detector (EFXN632)
The Eaton EFXN632 is a conventional photo-thermal multisensor detector. The photo-thermal detector type responds quickly to fast, clean burning fires. They maintain an advantage over optical sensors when detecting smouldering fires which give rise to large visible smoke particles. The thermal enhancement of this detector allows a higher alarm threshold which provides greater rejection of false alarms.
Key Features of the EFXN632 |
|---|
|
> 360° visibility LED using lightpipe technology
> Drift compensation > Aesthetically pleasing > Quick and simple to install > Wide viewing angle for increased LED visibility > Positive “lock” indication > Discreet design for any decor > Easy to maintain/service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | EFXN632 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | White |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Conventional Photo-Thermal Multisensor Detector (EFXN632)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Conventional Photo-Thermal Multisensor Detector (EFXN632)
| Product: | Eaton Conventional Photo-Thermal Detector/Sensor |
| Catalogue no.: | EFXN632 |
| Dimensions: | W:100mm x H:100mm x D:44mm |
| Current supply primary: | Battery / accumulator |
| Back-up battery included: | None |
| Type of supply: |
DC |
| Supply voltage: | 15V -30V |
| Alarm current: |
.34 - 25 mA |
| Response temperature: |
60oC |
| Operating principle: |
Combination - Photo-Thermal |
| Integrated function: |
Networkable via cable |
| Standby current: |
30 |
| System typology: | Conventional (Non-addressable) |
| Operating temperature: | -20oC to 60oC (93% RH) |
| Cable entry: | Rear |
| System wiring: | 0.5 - 2.5mm |
| Mounting method: | Surface, ceiling in open areas, suitable for duct mounting |
| Colour of housing: | White (RAL 9003) |
| IP Rating: | IP40 |
| Materials: | ABS |
| EN Certification standards: | EN54 Pt7 (Smoke Detector) EN54 Pt5 (Heat and Point Detectors) |
| Warranty: | 3 years |
| Weight: | 0.076kg |
