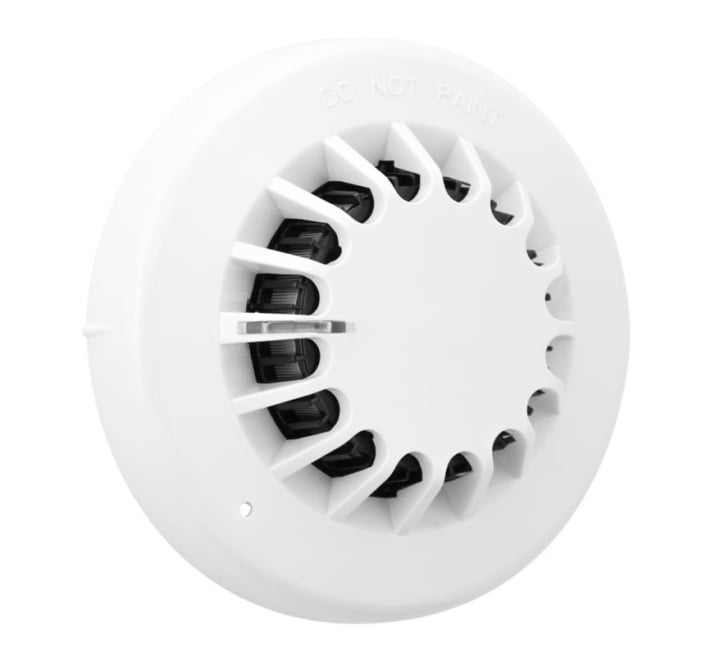

Eaton Conventional Fixed 92°C Heat Detector (EFXN526)
SKU
EFXN526
£15.74
£13.12
Eaton Conventional Fixed 92°C Heat Detector (EFXN526)
- Buy 10 for £15.38 £12.82 each and save 2%
In Stock
Product Details for Eaton Conventional Fixed 92°C Heat Detector (EFXN526)
The Eaton EFXN526 is a conventional heat detector with a fixed trigger temperature of 92°C (high temp). Compatible with conventional fire detection systems.
Key Features of the EFXN526 |
|---|
|
> Fixed trigger 92⁰C heat detector
> 360° visibility LED using lightpipe technology > Drift compensation > Aesthetically pleasing > Quick and simple to install > Wide viewing angle for increased LED visibility > Positive “lock” indication > Discreet design for any decor > Easy to maintain/service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | EFXN526 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Conventional Fixed 92°C Heat Detector (EFXN526)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Conventional Fixed 92°C Heat Detector (EFXN526)
| Product: | Eaton Conventional Heat Detector/Sensor, Fixed heat 92oC |
| Catalogue no.: | EFXN526 |
| Dimensions: | W:100mm x H:100mm x D:44mm |
| Current supply primary: | Battery / accumulator |
| Back-up battery included: | None |
| Type of supply: |
DC |
| Supply voltage: | 15V -30V |
| Alarm current: |
.34 - 25 mA |
| Response temperature: |
92oC |
| Operating principle: |
Thermo maximal |
| Integrated function: |
Networkable via cable |
| Standby current: |
30 |
| System typology: | Conventional (Non-addressable) |
| Operating temperature: | -20oC to 45oC (93% RH) |
| Cable entry: | Rear |
| System wiring: | 0.5 - 2.5mm |
| Mounting method: | Surface, Ceiling in open areas |
| Colour of housing: | White (RAL 9003) |
| IP Rating: | IP40 |
| Materials: | ABS |
| EN Certification standards: | EN54 Pt5 (Heat and Point Detectors) |
| Warranty: | 3 years |
| Weight: | 0.076kg |
