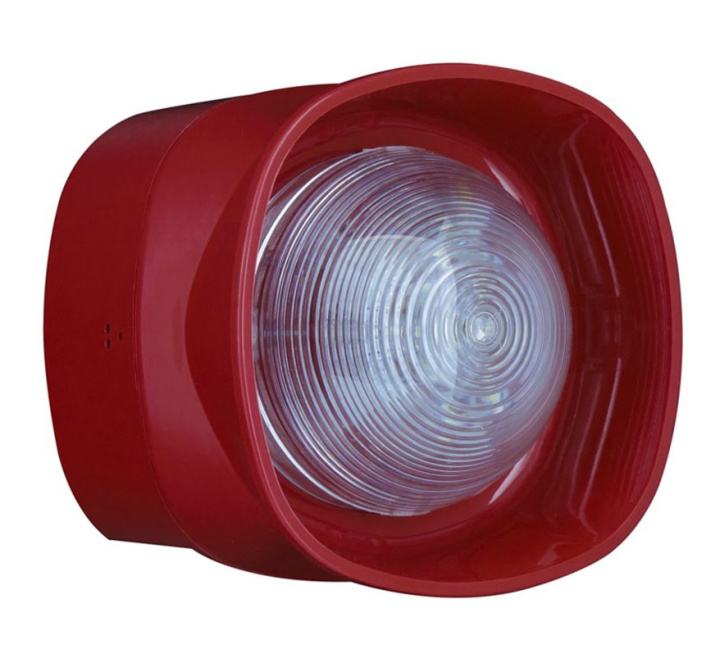

Eaton BiWire Ultra Wall Mounted Sounder VAD (EF009SB)
SKU
EF009SB
£35.52
£29.60
Eaton BiWire Ultra Wall Mounted Sounder VAD (EF009SB)
- Buy 10 for £34.69 £28.91 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton BiWire Ultra Wall Mounted Sounder VAD (EF009SB)
The Eaton EF009SB BiWire Ultra wall sounder VAD offers low current consumption and high sound output.
The BiWire range has been developed to be a flexible solution for a variety of applications, including offices, small warehouses, retail stores and primary schools.
Key Features of the EF009SB |
|---|
|
> Clear lens
> Red housing, white flash > IP21C rating for indoor use > Certified to EN54-3 and EN54-23 > High sound output and durable design > Certified for Fire use > Ideal for high noise environments > Suitable for open areas > Easy to maintain and service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | EF009SB |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton BiWire Ultra Wall Mounted Sounder VAD (EF009SB)
No questions yet. Be the first to ask the question!
Product Specification for Eaton BiWire Ultra Wall Mounted Sounder VAD (EF009SB)
| Product: | Eaton BiWire Wall Sounder VAD |
| Catalogue no.: | EF009SB |
| Dimensions: | W:105mm x H:105mm x D:90mm |
| Supply voltage: | 18 - 35 Vdc |
| Power: | .264W |
| Standby current: | 15 |
| Alarm current: | 2.6 -11 mA |
| Sound output: | 99 dB |
| Electricity consumption: | .011A |
| Frequency sound signal: | .5 - 1.2 KHz |
| Type of acoustic signal: | Programmable |
| Type of acoustic signal device: | Sound generator |
| No. of tones: | 3 |
| Voice tones: | No |
| Type of optical signal: | Flash light |
| System typology: | BiWire |
| Operating temperature: | -20oC to 70oC (93% RH) |
| Cable entry: | Rear |
| System wiring: | 2.5mm |
| Mounting method: | Surface, Wall |
| Colour of housing: | Red |
| Colour of Lens / Light: | Clear / White |
| Lamp type: | LED |
| IP Rating: | IP21 |
| Materials: | ABS, Plastic |
| EN Certified tones: | 3 |
| EN Certification standards: | EN54 Pt3 (Fire Alarm Sounders) EN54 Pt23 (Visual Alarms) |
| Compliance: | EN 54-23 |
| Warranty: | 3 years |
| Weight: | 0.208kg |
