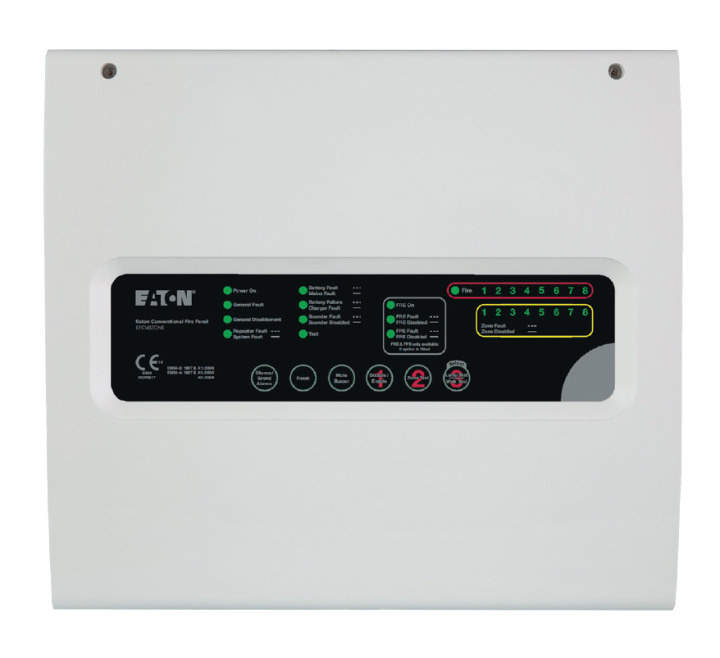

Eaton Flexi 8 Zone BiWire / Conventional Fire Control Panel (EFBW8ZFLEXI)
Product Details for Eaton Flexi 8 Zone BiWire / Conventional Fire Control Panel (EFBW8ZFLEXI)
The EFBW8ZFLEXI Conventional / BiWire Flexi fire alarm panel combines two technologies to provide a truly versatile fire safety solution.
The panel can be configured to allow either two-wire or conventional devices to work on a zone. Each zone is individually configurable so a mixture of types can therefore be installed on the same system. This provides you with the flexibility to utilise all the time-saving benefits of a two-wire system with the ability to use a wide range of conventional devices, where required.
It shares the same straightforward, intuitive interface as the 8 Zone conventional panel, providing a proven solution for simple programming and maintenance. The BiWire Flexi fire alarm system is certified to EN54 parts 2 and 4 and is designed to meet the recommendations of BS 5839.
Key Features of the EFBW8ZFLEXI |
|---|
|
> Eaton Flexi Control Panel
> 8 Zone > Configure zone wiring to work as either a conventional or two-wire panel > Allows the connection of an existing conventional system to a BiWire system > Compatible with two-wire and conventional EN 54-23 certified visual alarm devices (VADs) > Reduces stock-holding and enables the fire system to adapt to the demands of the customer or application > Can be used in a wide variety of applications and is very simple to install > Save time, money and effort when undertaking system extensions and upgrades > Up-to-date with latest regulations > Order batteries separately |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | EFBW8ZFLEXI |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional/2-Wire |
| Number of Zones | 8 |
| Warranty | 3 Years |
FAQ’s for Eaton Flexi 8 Zone BiWire / Conventional Fire Control Panel (EFBW8ZFLEXI)
Product Specification for Eaton Flexi 8 Zone BiWire / Conventional Fire Control Panel (EFBW8ZFLEXI)
| Product: | Eaton BiWire Flexi Control Panel, 8 Zone |
| Catalogue no.: | EFBW8ZFLEXI |
| Dimensions: | W:375mm x H:336mm x D:134mm |
| Aux. relays: | Fire / Fault |
| Main input supply: | 230 Vac, 50 Hz |
| Input voltage: | 18.75 - 30.7V |
| Max. loading per zone: | 200mA |
| Fitted with: | Power adaptor |
| Battery voltage: | 12V |
| No. of batteries: | 2 x MB512 batteries (not included) |
| Max. current drawn from battery: | 2.7A |
| Battery capacity: | 5 Ah |
| End of line termination: | BiWire Zones = EOLM-3 only Standard conventional zones = EOLM-1 or EOLM3 |
| Auxiliary free output: | Yes |
| Mounting method: | Surface |
| No. of detection groups: | 8 |
| No. of detection addresses: | 32 |
| No. of outputs for acoustic signal generators: | 4 |
| No. of outputs for optical signal generators: | 4 |
| Max. no. of conventional zones: | 8 |
| Max. network size (no. of nodes): | 2 |
| System topology: | BiWire |
| Integrated function: | Interface external |
| IP Rating: | IP30 |
| Operating temperature: | -5oC to 40oC, 0 - 93% humidity (Non-condensing) |
| Cable entry location: | Top: 29 M20 knockouts |
| Construction material: | ABS |
| EN certification standards: | EN54 Pt2 (Control & Indicating Equipment) EN54 Pt4 (Power Supply Equipment) EN54-2:1997+A1:2006, EN54-4:1997+A1:2002+A2:2006 |
| Warranty: | 3 years |
| Weight: | 2.25 kg |
