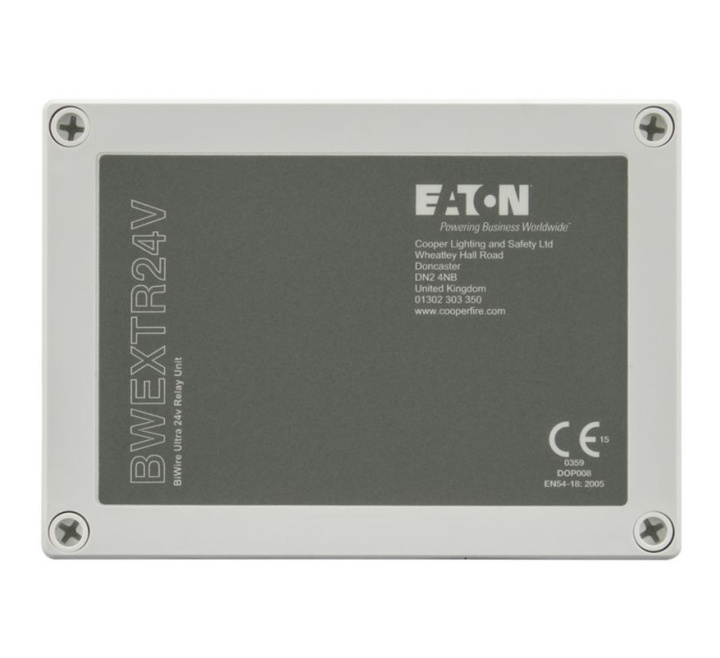

Eaton BiWire Ultra External Relay Module 24V (BWEXTR24V)
SKU
BWEXTR24V
£88.75
£73.96
Eaton BiWire Ultra External Relay Module 24V (BWEXTR24V)
- Buy 10 for £86.68 £72.23 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton BiWire Ultra External Relay Module 24V (BWEXTR24V)
The Eaton BWEXTR24V BiWire Ultra output relay module offers a convenient solution for connecting BiWire Ultra systems with external devices like door retainers.
This module is designed to simplify the installation process and provides added flexibility for installers. With the ability to achieve external switching without the need to wire back to the main fire alarm control panel, it offers a straightforward means of interfacing and enhances the functionality of the system.
Key Features of the BWEXTR24V |
|---|
|
> Quick and simple to install
> Provides flexibility at system installation > 24V for low voltage switching |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | BWEXTR24V |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton BiWire Ultra External Relay Module 24V (BWEXTR24V)
No questions yet. Be the first to ask the question!
Product Specification for Eaton BiWire Ultra External Relay Module 24V (BWEXTR24V)
| Product: | Eaton BiWire External Relay Module 24V |
| Catalogue no.: | BWEXTR24V |
| Dimensions: | W:181mm x H:130mm x D:59.5mm |
| Operating voltage: | 18 - 22 Vdc |
| Standby current: | 130 |
| Alarm current: | .2 mA max |
| No. of output circuits: | 1 |
| Lamp type included: | Halogen Free |
| System typology: | BiWire |
| Operating temperature: | -10oC to 55oC (93% RH) |
| DIN rail compatible: | No |
| Cable entry: | Top |
| Colour: | Light grey (RAL7035) |
| Materials: | ABS, Plastic |
| EN Certification: | EN54 Pt18 (Input/Output Devices) |
| Warranty: | 3 years |
| Weight: | 0.482 kg |
