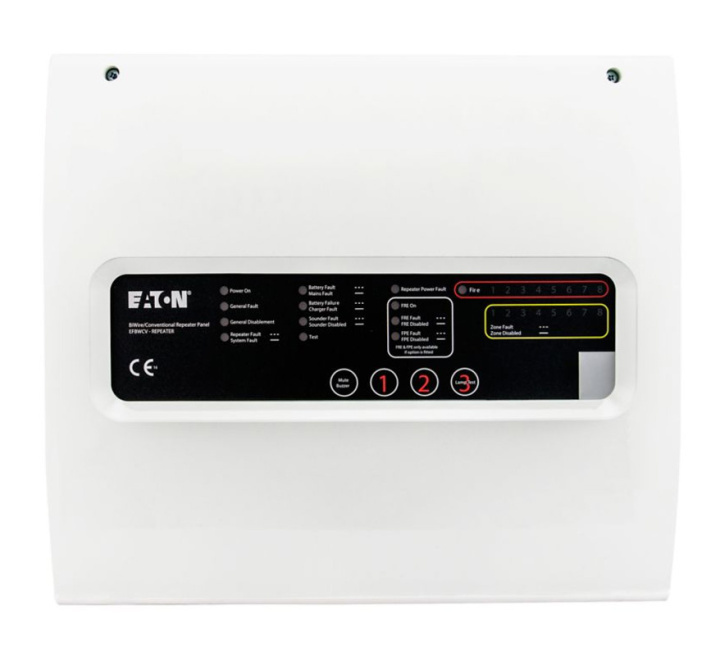

Eaton Flexi BiWire / Conventional Repeater Panel (EFBWCV-REPEATER)
SKU
EFBWCV-REPEATER
£177.56
£147.97
Eaton Flexi BiWire / Conventional Repeater Panel (EFBWCV-REPEATER)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton Flexi BiWire / Conventional Repeater Panel (EFBWCV-REPEATER)
The Eaton BiWire and conventional repeater panel is compatible with the Eaton BiWire Flexi panel range and 8 zone conventional control panel.
The repeater panel can be daisy-chained with up to 3 panels per control panel and can repeat information from any zone of the panel that it is cabled to.
With an integrated power supply, the only wiring required for the repeater panel is the mains input to the power supply unit and the data cable between the fire control panel and each repeater panel.
Key Features of the EFBWCV-REPEATER |
|---|
|
> Can be used with 2, 4 and 8 zone control panels
> Internal Power supply > Up to 3 repeaters per control panel > Same modern enclosure as control panels > Simple unit cabling |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | EFBWCV-REPEATER |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional/2-Wire |
| Number of Zones | 8 |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Flexi BiWire / Conventional Repeater Panel (EFBWCV-REPEATER)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Flexi BiWire / Conventional Repeater Panel (EFBWCV-REPEATER)
| Product: | Eaton BiWire Flexi Repeater Panel |
| Catalogue no.: | EFBWCV-REPEATER |
| Dimensions: | W:375mm x H:336mm x D:134mm |
| Main input supply: | 230 Vac, 50 Hz |
| Input voltage: | 18.75 - 30.7V |
| Battery voltage: | 12V |
| No. of batteries: | 2 x MB512 batteries (not included) |
| Battery capacity: | 5 Ah |
| Mounting method: | Surface |
| No. of detection groups: | 8 |
| Max. network size (no. of nodes): | 3 |
| External connection ports: | RS485 |
| System topology: | BiWire |
| Integrated function: | Interface external Emergency Power Supply integrated |
| IP Rating: | IP30 |
| Operating temperature: | -5oC to 40oC, 0 - 93% humidity (Non-condensing) |
| Cable entry location: | Top: 29 M20 knockouts |
| Construction material: | ABS |
| Weight: | 2.274 kg |
