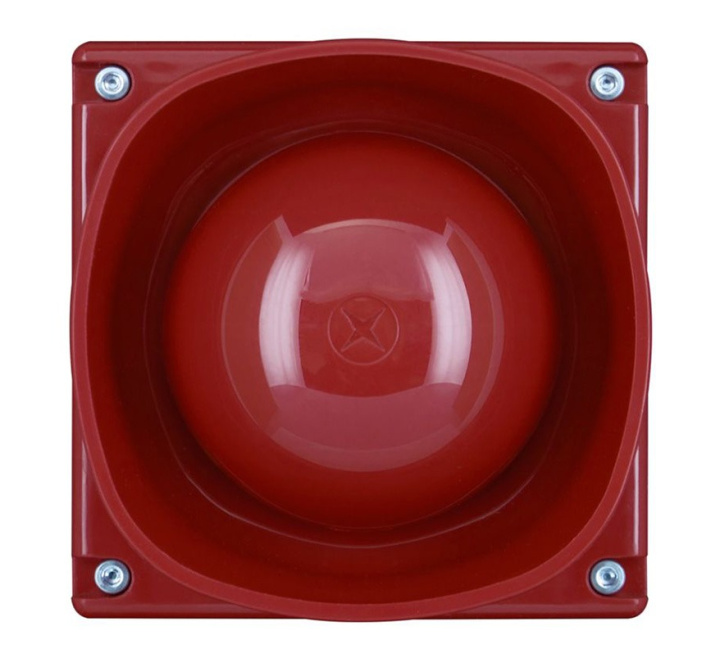

Eaton Cooper Intelligent Addressable Weatherproof Wall Sounder (CAS381WP)
SKU
CAS381WP
£76.54 £63.78
Eaton Cooper Intelligent Addressable Weatherproof Wall Sounder (CAS381WP)
- Buy 10 for £75.36 £62.80 each and save 2%
Product Details for Eaton Cooper Intelligent Addressable Weatherproof Wall Sounder (CAS381WP)
The Eaton CAS381WP addressable wall sounder is IP66 rated and therefore suitable for external and wash down areas, it is designed for wall mounting, has a choice of different tones and volume levels, a built in short circuit isolator and is soft addressed for ease of installation.
The CAS381WP is compatible with Eaton’s range of intelligent addressable fire systems.
The high efficiency design of these intelligent addressable wall sounders offer excellent sound output levels despite the low current consumption.
Key Features of the CAS381WP |
|---|
| > Soft addressed > Weatherproof, IP66 rated > Loop powered > Soft addressed > Integral short circuit Isolator > High efficiency design > Simple clip fixing assembly > Quick and simple to install > Low current consumption > Selectable tone controlled by the panel > Adjustable volume controlled by the panel > First fix back box > Easy to maintain/service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CAS381WP |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Colour | Red |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Cooper Intelligent Addressable Weatherproof Wall Sounder (CAS381WP)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Intelligent Addressable Weatherproof Wall Sounder (CAS381WP)
| Product: | Eaton Addressable Wall Sounder Base, Weatherproof |
| Catalogue no.: | CAS381WP |
| Dimensions: | W:108mm x H: 108mm x D:103mm |
| EN Certification: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt3 (Fire Alarm Sounders) |
| Voice tones: | No |
| Tones (set by panel): | Continuous: 984 Hz Pulsed: 984Hz / 0Hz pulse 1 Hz 2-tone: 644/984 Hz @ 1 Hz cycle Slow whoop: 500-1200Hz in 3.5/0.5 seconds gap |
| Sound output @ approx 3dB @ 1m (set by panel): | Low volume: 84 dB @ <2mA Med volume: 93 dB @ <3mA High volume:100 dB @ <6mA |
| Standby current: | <320μA |
| Operating voltage: | 17 - 32V dc |
| Operating temperature: | -10oC -+55oC (95% humidity non-condensing) |
| Cable entry: | Rear/side |
| IP rating: | IP66 |
| System typology: | Addressable (soft) |
| Material: | PC/ABS |
| Colour: | Red |
