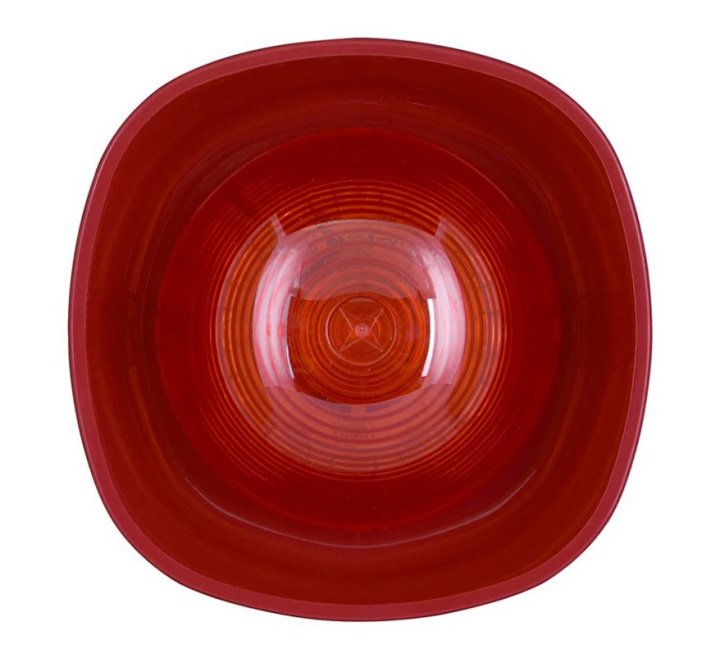

Eaton Cooper Intelligent Addressable Wall Sounder Beacon (CASB383)
SKU
CASB383
£100.76 £83.97
Eaton Cooper Intelligent Addressable Wall Sounder Beacon (CASB383)
- Buy 10 for £99.22 £82.68 each and save 2%
Product Details for Eaton Cooper Intelligent Addressable Wall Sounder Beacon (CASB383)
The Eaton CASB383 addressable sounder beacon is designed for wall mounting, has a choice of different tones and volume levels, a built in short circuit isolator and is soft addressed for ease of installation.
The CASB383 is compatible with Eaton’s Cooper range of intelligent addressable fire systems.
The high efficiency design of these intelligent addressable wall sounder beacons offer excellent sound output levels despite the low current consumption. Whilst also including a high powered LED beacon to provide both audible and visual alarm signals.
Key Features of the CASB383 |
|---|
| > Soft addressed > Red housing > Red flash > Loop powered > Soft addressed > Integral short circuit Isolator > High efficiency design > Simple clip fixing assembly > Quick and simple to install > High efficiency audio/visual unit > Low current consumption > Selectable tone controlled by the panel > Adjustable volume controlled by the panel > First fix back box > Easy to maintain/service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CASB383 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Colour | Red |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Cooper Intelligent Addressable Wall Sounder Beacon (CASB383)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Intelligent Addressable Wall Sounder Beacon (CASB383)
| Product: | Eaton Addressable Wall Sounder Beacon |
| Catalogue no.: | CASB383 |
| Dimensions: | W:105mm x H: 105mm x D:95mm |
| EN Certification: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt3 (Fire Alarm Sounders) |
| Voice tones: | No |
| Tones (set by panel): | Continuous: 984 Hz Pulsed: 984Hz / 0Hz pulse 1 Hz 2-tone: 644/984 Hz @ 1 Hz cycle Slow whoop: 500-1200Hz in 3.5/0.5 seconds gap |
| Sound output @ approx 3dB @ 1m (set by panel): | Low volume: 92 dB @ <6.5mA Med volume: 97 dB @ <7.5mA High volume:100 dB @ <8.5mA |
| Flash energy: | 1 Hz |
| Standby current: | <320μA |
| Operating voltage: | 17 - 32V dc |
| Operating temperature: | -10oC -+55oC (95% humidity non-condensing) |
| Cable entry: | Rear/side |
| IP rating: | IP42 |
| System typology: | Addressable (soft) |
| Material: | PC/ABS |
| Type of optical signal: | Flash light |
| Type of acoustic signal: | Sounder generator / programmable |
| Cable size: | 0.5 - 2.5mm/FIRETUF, FP200 or MICC |
| Lamp type: | LED |
| Light colour: | Red |
| Colour housing / lens: | Red / Red |
| Mounting: | Surface, wall (internal) |
| Weight: | 0.21 kg |
