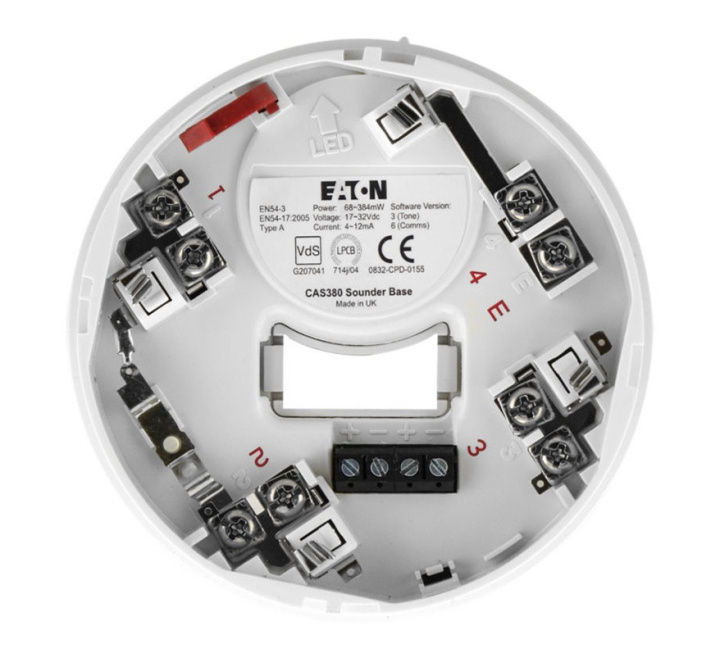

Eaton Cooper Intelligent Addressable Sounder Base (CAS380)
SKU
CAS380
£42.48
£35.40
Eaton Cooper Intelligent Addressable Sounder Base (CAS380)
- Buy 10 for £41.48 £34.57 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton Cooper Intelligent Addressable Sounder Base (CAS380)
The Eaton CAS380 intelligent addressable sounder base can be used both with a sensor or as a stand alone device.
The CAS380 is compatible with Eaton’s range of intelligent addressable sensors and fire systems.
This device incorporates a sensor mounting base, a sensor can be fitted to the sounder base or alternatively an optional cover plate (CASC) can be used to enable the sounder to operate as a dedicated discreet stand alone sounder.
Key Features of the CAS380 |
|---|
|
> Integral short circuit isolator
> Integral sensor mounting base > Can be used with a sensor as a sounder base or stand alone as a sounder > Cover plate available separately > Quick and simple to install > First fix base > Selectable tones controlled by the panel > Adjustable volume controlled by the panel > Single point connection for sensor and sounder (saving on both time and installation costs) > Easy to maintain/service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CAS380 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Cooper Intelligent Addressable Sounder Base (CAS380)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Intelligent Addressable Sounder Base (CAS380)
| Product: | Eaton Addressable Sounder Base |
| Catalogue no.: | CAS380 |
| Dimensions: | Dia:102mm x D:40mm |
| EN Certification: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt3 (Fire Alarm Sounders) |
| Voice tones: |
No |
| Tones (set by panel): | Continuous: 910 Hz Pulsed: 910Hz / 0Hz pulse 1 Hz 2-tone: 610/910 Hz @ 1 Hz cycle Slow whoop |
| Sound output @ approx 3dB @ 1m (set by panel): | Low volume: 84 dB @ <4mA Med volume: 92 dB @ <8mA High volume: 95 dB @ <12mA |
| Standby current: |
<320μA |
| Operating voltage: | 17 - 32V dc |
| Operating temperature: |
-10oC -+55oC (95% humidity non-condensing) |
| Cable entry: | Rear |
| IP rating: | IP40 |
| System typology: | Addressable (soft) |
| Material: | PC/ABS |
| Colour: | White |
| Mounting: | Surface, ceiling |
| Warranty: | 3 year |
| Weight: |
0.2 kg |
