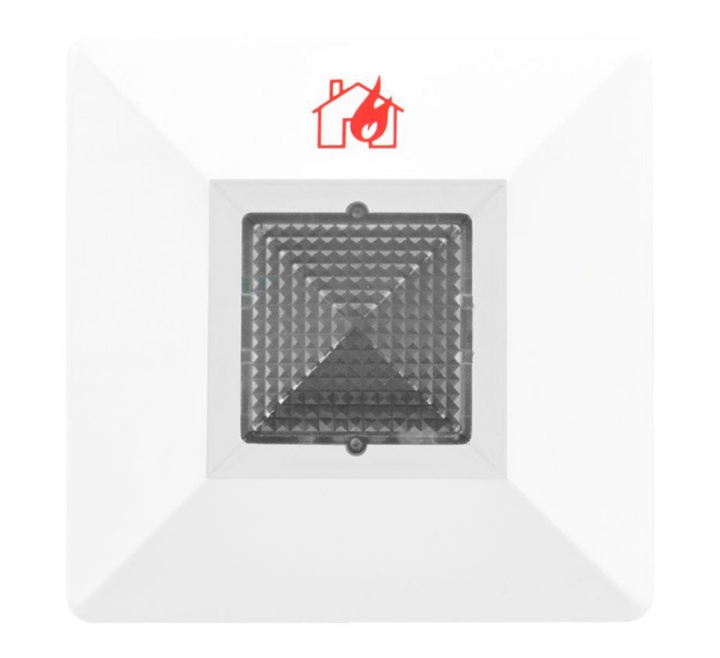

Eaton Cooper Intelligent Addressable Remote Indicator (MRIAD)
- Buy 10 for £30.16 £25.13 each and save 2%
Product Details for Eaton Cooper Intelligent Addressable Remote Indicator (MRIAD)
The Eaton MRIAD intelligent addressable loop connected remote indicator is designed to provide discreet remote indication, which is controlled by the intelligent addressable control panel, whilst providing the ability to monitor multiple sensors within an area thereby minimising wiring requirements.
The MRIAD is compatible with Eaton’s range of intelligent addressable fire systems.
The device is connected directly on to the loop, and is “soft addressed” by the panel on system start up and is fitted with integral short circuit isolators.
When using “site installer” the intelligent addressable loop connected remote indicator should be programmed as an address output (sounder) and can be programmed using the comprehensive cause and effect tables to operate continuous, pulsing, by global, panel, zone, address or on double knock input etc.
The device is supplied complete with back box and is surface mounted.
Key Features of the MRIAD |
|---|
|
> Loop powered
> Soft addressed > Integral short circuit Isolator > Single address > High visibility LED > Can be programmed to monitor multiple remote sensors > Fits on to a standard single gang back box > Aesthetically pleasing > Quick and simple to install > Wide viewing angle for increased visibility > Discreet design for any decor > Can be activated by cause and effect programming > Reduced cost > Minimises cabling > Easy to maintain/service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | MRIAD |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Colour | White |
| Warranty | 3 Years |
FAQ’s for Eaton Cooper Intelligent Addressable Remote Indicator (MRIAD)
Product Specification for Eaton Cooper Intelligent Addressable Remote Indicator (MRIAD)
| Product: | Eaton Addressable Remote Indicator |
| Catalogue no.: | MRIAD |
| Dimensions: | W:87mm x H:87mm x D:49mm |
| Voltage: | 24V dc |
| Alarm current: | 6mA |
| Integrated function: |
Continuous light |
| Cable size: |
0.5 - 2.5mm2 |
| System typology: |
Addressable, soft addressing |
| Mounting method: |
Surface, Wall (internal) |
| Cable entry: |
Rear |
| Operating temperature: | -10oC to +55oC (95% max humidity, non condensing) |
| Construction: | ABS |
| Colour: | White |
| IP rating: | IP30 |
| Warranty: | 3 years |
| Weight: | 0.28 kg |
