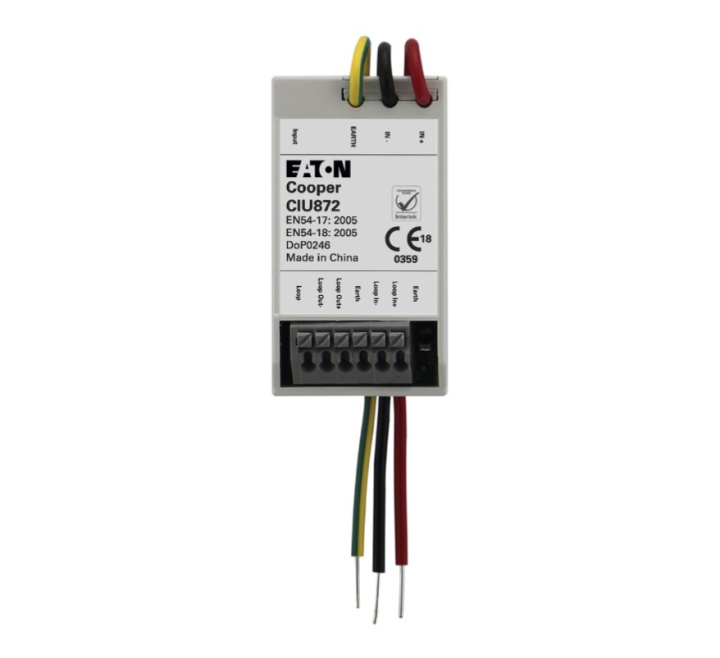

Eaton Cooper Addressable Micro Zone Monitor Unit (CIU872)
SKU
CIU872
£33.86
£28.22
Eaton Cooper Addressable Micro Zone Monitor Unit (CIU872)
- Buy 10 for £33.07 £27.56 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton Cooper Addressable Micro Zone Monitor Unit (CIU872)
The CIU872 is a single zone input, soft addressed, micro interface, incorporating integral short circuit isolators.
It is fully compatible with the current range of Eaton intelligent addressable control panels. It is suitable for interfacing a zone of up to 20 conventional Eaton detectors onto a Eaton intelligent addressable control panel.
It will operate with any Eaton conventional detector in configuration with a schottky diode type base (CDBB300).
Key Features of the CIU872 |
|---|
|
> Soft addressed
> Integral short circuit isolator > Single address > Accepts a zone of up to 20 Eaton conventional detectors > Input monitored for open, short circuit and earth contact faults > Active end of line monitoring > Quick and simple to install > No hard addressing required (Plug and play) > Compact size > Easy to expand a system using existing wiring > No external power supply required |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CIU872 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Number of Zones | 1 |
| Protocol Compatibility | Eaton |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Cooper Addressable Micro Zone Monitor Unit (CIU872)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Addressable Micro Zone Monitor Unit (CIU872)
| Product: | Eaton Addressable Micro Zone Monitor Unit |
| Catalogue no.: | CIU872 |
| Dimensions: | W:35mm x H:63mm x L/D:18.5mm |
| EN Certification standards: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt18 (Input/Output Devices) |
| Operating voltage: |
18.5 - 30V dc |
| Quiescent current: |
2.6mA (nom) |
| Load with 20 detectors and unlimited callpoints: |
3.2mA (nom) |
| Alarm load with 20 detectors and unlimited callpoints |
8.0mA (nom) |
| Detectors per zone: | 20 (max) |
| End of line monitor: | Active end of line unit - EOLM-1 |
| Fire input trigger resistance: | 680 Ω (nom) |
| Short circuit fault threshold resistance: | 100 Ω (nom) |
| Open circuit fault threshold resistance: | 39KΩ (min) |
| Operating temperature: | -10oC to +60oC |
| Humidity (non condensing): | 0 - 95% RH |
| Construction: | PC/ABS |
| IP rating: | IP40 |
| Recommended loop/cable: | Fire Tuff, FP200, MICC |
| Weight: |
0.28 kg |
