Eaton Cooper Addressable Micro Single Channel Output Unit (MCOM)
SKU
MCOM
£32.54
£27.12
Eaton Cooper Addressable Micro Single Channel Output Unit (MCOM)
- Buy 10 for £31.78 £26.48 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton Cooper Addressable Micro Single Channel Output Unit (MCOM)

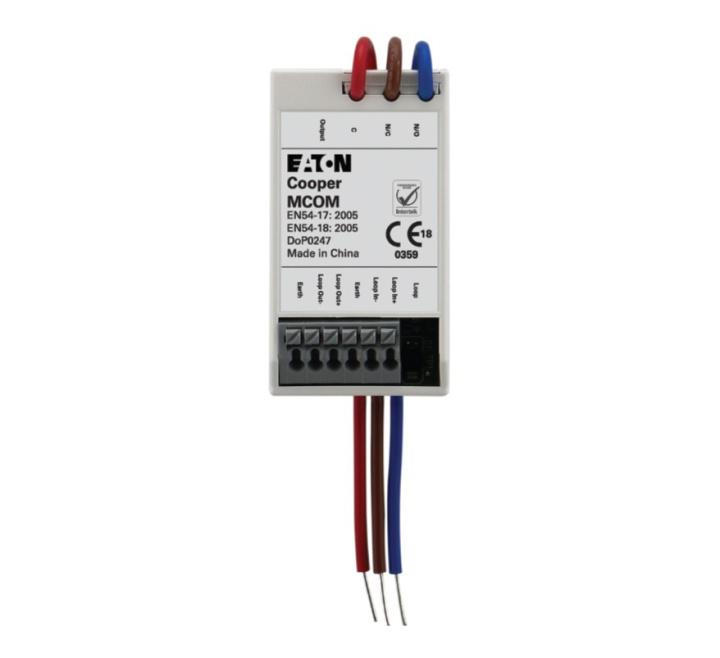

The MCOM is a single output, soft addressed, micro interface, incorporating integral short circuit isolators. It is extremely compact and therefore ideal for incorporation into other equipment.
The MCOM is fully compatible with the current range of Eaton intelligent addressable fire control panels.
It is suitable for switching low voltage (24V dc at 1A maximum), via a set of non latching relay contacts.
It is suitable for switching HVAC control circuits, plant shutdown control circuits, fire door closure etc.
Key Features of the MCOM |
|---|
|
> Single Channel
> Recognised by Panel as an output unit > Quick and simple to install > Compact size > Soft Addressed > Integral short circuit isolator > Plug and play, no hard addressing required > No external short circuit isolator required |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | MCOM |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Cooper Addressable Micro Single Channel Output Unit (MCOM)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Addressable Micro Single Channel Output Unit (MCOM)
| Product: | Eaton Addressable Micro Output Unit/Module, Single Channel |
| Catalogue no.: | MCOM |
| Dimensions: | W:35mm x H:65mm x L/D:18.5mm |
| EN Certification standards: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt18 (Input/Output Devices) |
| System topology: | Addressable (soft) |
| Operating voltage: |
18.5V - 30V dc |
| Quiescent current: |
310μA |
| Switching voltage: | 24V - 30V dc |
| Contact rating: |
1A |
| Switching power: |
30W |
| Operating temperature: | -10oC to +60oC |
| Humidity (non condensing): | 0 - 95% RH |
| Construction: | PC/ABS |
| IP rating: |
IP40 |
| DIN rail compatible: | No |
| Lamp type included: | Halogen free |
| Recommended loop/cable type: | Fire Tuff, FP200, MICC |
| Cable entry: | Top |
| Colour: | Cream-White |
| Warranty: | 3 year |
| Weight: |
0.078 kg |
