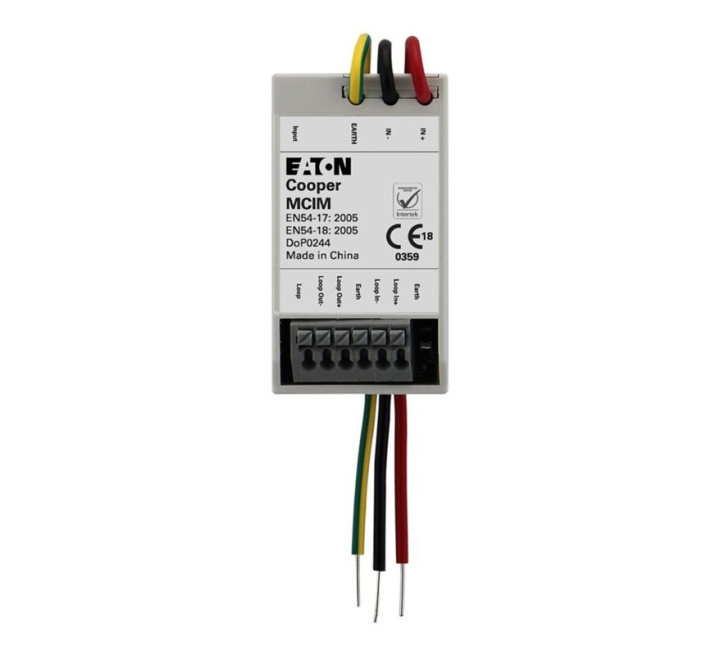

Eaton Cooper Addressable Micro Single Channel Input Unit (MCIM)
SKU
MCIM
£25.20
£21.00
Eaton Cooper Addressable Micro Single Channel Input Unit (MCIM)
- Buy 10 for £24.61 £20.51 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton Cooper Addressable Micro Single Channel Input Unit (MCIM)
The MCIM is a single input, soft addressed micro interface, incorporating integral short circuit isolators. It is extremely compact and therefore ideal for incorporation into other equipment.
The MCIM is fully compatible with the current range of Eaton intelligent addressable fire control panels. It is suitable for monitoring a set of normally open, volt free contacts such as sprinkler system flow switches, auxiliary panel fire/fault signals as well as non fire input signals such as flow valve open contacts, generator start up, fire door closed etc.
Key Features of the MCIM |
|---|
|
> Soft addressed
> Integral short circuit isolator > Single address > Suitable for monitoring: - Flow switches - Non fire inputs - Auxiliary panels > Up to 200 units per loop > Quick and simple to install > No hard addressing required (Plug and play) > Compact size > Programmable by Eaton site installer software as technical input/non fire input |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | MCIM |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Cooper Addressable Micro Single Channel Input Unit (MCIM)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Addressable Micro Single Channel Input Unit (MCIM)
| Product: | Eaton Addressable Micro Input Unit/Module, Single Channel |
| Catalogue no.: | MCIM |
| Dimensions: | W:35mm x H:65mm x L/D:18.5mm |
| EN Certification standards: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt18 (Input/Output Devices) |
| System topology: | Addressable (soft) |
| Operating voltage: |
18V - 30V dc |
| Quiescent current: |
310μA |
| Trigger resistance: | 5K6Ω |
| End of line resistor: | 22KΩ |
| Short circuit fault threshold resistance: | 1KΩ |
| Open circuit threshold resistance: | 33KΩ |
| Operating temperature: | -10oC to +60oC |
| Humidity (non condensing): | 0 - 95% RH |
| Construction: | PC/ABS |
| IP rating: |
IP40 |
| DIN rail compatible: | No |
| Lamp type included: | Halogen free |
| Recommended loop/cable type: | Fire Tuff, FP200, MICC |
| Cable entry: | Top |
| Colour: | Cream-White |
| Warranty: | 3 year |
| Weight: |
0.078 kg |
