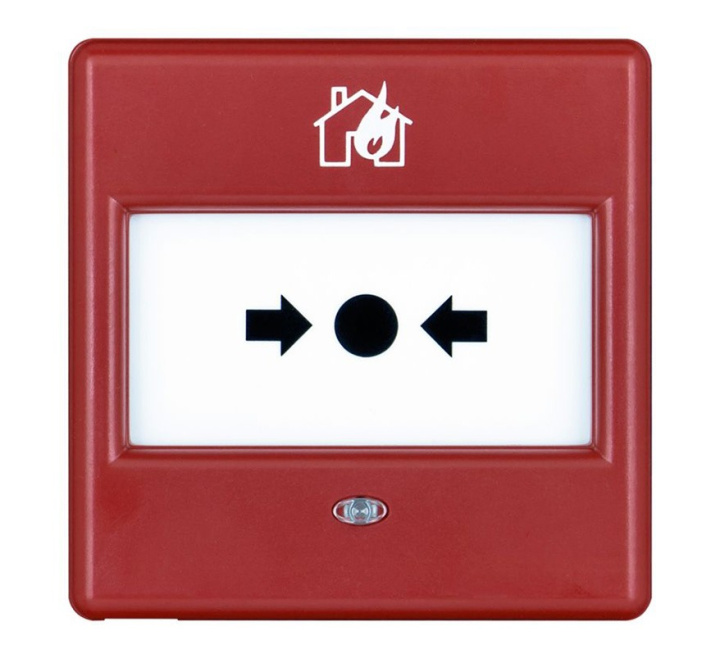

Eaton Cooper Intelligent Addressable Manual Call Point (CBG370S)
- Buy 10 for £37.16 £30.97 each and save 2%
Product Details for Eaton Cooper Intelligent Addressable Manual Call Point (CBG370S)
Eaton’s CBG370S addressable system manual call point was one of the first plastic element resettable call points to enter the market. Attractive in design, soft addressed and featuring heavy duty terminals the call point is market leading for installation speed with its fast fit clip.

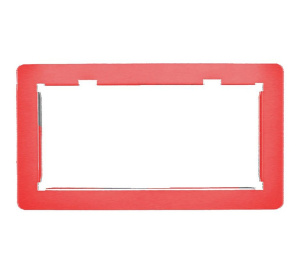

The call point can also be either surface mounted using the rear BESA fixing or recessed mounted with the addition of recessing bezels sold separately. Alongside the recessing bezels, a comprehensive range of accessories can be used with Eaton’s addressable fire system call point including protective hinge covers for busy areas, spacer plates, resettable element kit and spare glass in packs of 5 pieces.
The surface mounted version is rated IP42 for protection from condensation. A clever test function enables quick and simple monitoring of the call point with the resetting key that’s included in the box with the call point alongside a frangible glass element. While a status LED below the element provides clear indication when triggered.
Key Features of the CBG370S |
|---|
|
> Soft addressed
> Integral short circuit isolator > Single address > Fast fit clip on front cover > High visibility status LED > Wide range of accessories > Heavy duty terminals > Quick and simple to install > Single tool for test and access > Robust construction > Easy to maintain/service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CBG370S |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Colour | Red |
| Warranty | 3 Years |
FAQ’s for Eaton Cooper Intelligent Addressable Manual Call Point (CBG370S)
Product Specification for Eaton Cooper Intelligent Addressable Manual Call Point (CBG370S)
| Product: | Eaton Addressable Manual Call Point |
| Catalogue no.: | CBG370S |
| Dimensions: | W:87mm x H:87mm x D:57mm (36mm flush) |
| EN Certification: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt11 (Manual Call Point) |
| Type of messaging: |
Fire brigade alarm (red) |
| Resettable: | No |
| Fitted with: |
Glass disc |
| Operating voltage: | 17 - 32V dc |
| Operating temperature: |
-10oC -+55oC (93% humidity non-condensing) |
| Cable entry: | Rear |
| IP rating: | IP42 |
| System typology: | Addressable (soft) |
| Material: | PC/ABS |
| Colour: | Red |
| Mounting: | Surface / Flush, Wall (internal) |
| Weight: |
0.2 kg |
