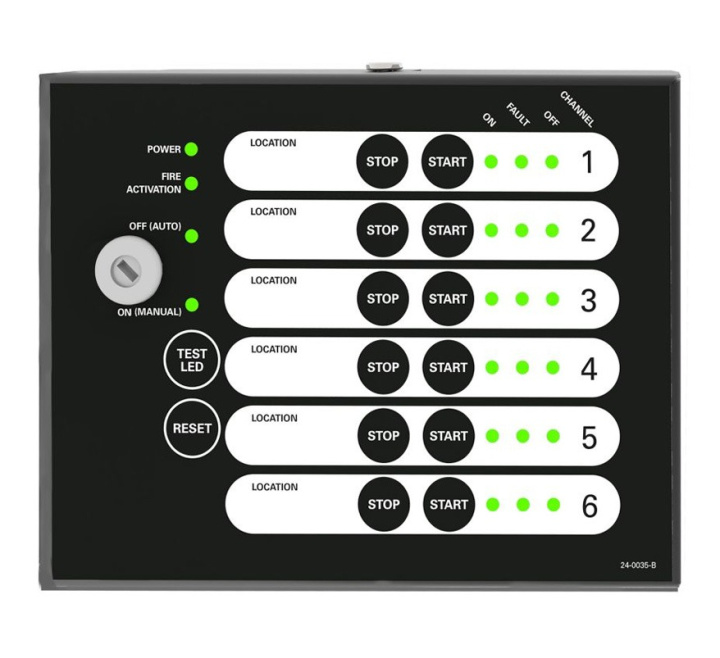

Eaton Cooper Addressable Fan Controller (6 Channel, Surface Mount) (FC6)
Product Details for Eaton Cooper Addressable Fan Controller (6 Channel, Surface Mount) (FC6)
The Eaton FC6 fan controller unit is designed to work with the Eaton CF3000 range of addressable fire alarm control panels, providing the capability to control and display the status of AHU fans.
Connecting to Eaton's CF3000 addressable control panel by means of the comms loop, utilizing only one address to monitor and control air handling unit (AHU) fans.
Each FC6 unit incorporates its own CPU specifically configured to control the relevant input and output logic making programming quick and easy via Eaton site installer software.
Using site installer software, each individual fan control channel is programmed to an output and feedback input field device to control and monitor the status of an AHU fan.
The FC6 can control up to 6 fans when wall mounted, and supports an option for up to 3 fan controller units to be combined inside a 19-inch rack using the FC18-BEZEL mounting bezel; in this configuration it is possible for users to control up to 18 fans.
Key Features of the FC6 |
|---|
|
> Soft addressed
> Integral short circuit isolator > Single address > Comprehensive LED display > Surface or rack mounting (using FC18-BEZEL) > Comprehensive cause and effect software > Controls up to 6 fans > Automatic or manual operation > Quick and simple to install > No hard addressing required (Plug and play) > Control and feedback in one unit > Cost effective installation solution |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | FC6 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Warranty | 3 Years |
FAQ’s for Eaton Cooper Addressable Fan Controller (6 Channel, Surface Mount) (FC6)
Product Specification for Eaton Cooper Addressable Fan Controller (6 Channel, Surface Mount) (FC6)
| Product: | Eaton Addressable Fan Controller Unit |
| Catalogue no.: | FC6 |
| Dimensions: | W:146mm x H:113mm x L/D:41mm |
| System topology: | Addressable (soft) |
| External 24V supply: |
18V - 24V dc |
| External current: | 150mA |
| Quiescent current: |
310μA (nom) |
| Operating temperature: | -10oC to +60oC |
| Humidity (non condensing): | 0 - 95% RH |
| Construction: | Mild steel |
| Compatible with: |
CF3000 Addressable Fire Systems |
| DIN rail compatible: | No |
| Lamp type included: | Halogen free |
| Cable entry: | Rear |
| Colour: | Anthracite |
| Warranty: | 3 year |
| Weight: |
0.574 kg |
