Eaton Addressable Door Release Module (CIOP-7273)
Product Details for Eaton Addressable Door Release Module (CIOP-7273)

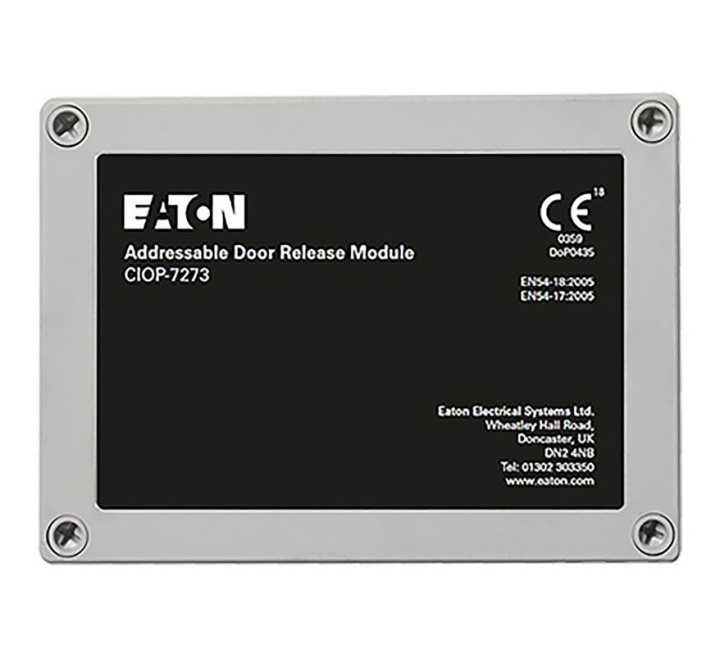

The CIOP-7273 Eaton Fire module allows addressable systems to comply with the demands of class A doors and their release in the event of the full range of scenarios as detailed in BS7273-4 standard.
The unit is a 2 way soft addressed output module, incorporating integral short circuit isolators.
The relay boards are fully compatible with the current range of Eaton intelligent addressable control panels.
The units are suitable for switching low voltage (24V DC @ 2A maximum), via a set of non-latching relay contacts. The flexibility of these modules is further enhanced by the fact that each output can be programmed for the full range of triggers required by BS7273-4 such as disablement, fault and fire with additional triggers of pre-alarm, fire routing equipment, fire protecting equipment. Each output can be programmed with 16 triggers.
The trigger source can be global, by panel, by loop, by zone or by address. The logic is available in both or/and functions.
The unit can be programmed using the Site Installer PC software using the RS232 port. This module requires external power.
Key Features of the CIOP-7273 |
|---|
|
> BS7273-4:2015 compliant
> Integral short circuit isolator > Single address > 2 dry contact relay outputs > Reset button > 16 settings per output > Trigger types: pre-alarm, FRE, FPE, reset, fire, fault, disablement, test > Trigger source: global, by panel, by loop, by zone, by address > Logic functions (OR and AND) > External power supply connection with monitored fault inputs > Quick and simple to install > Pluggable terminals for ease of wiring > Programmable via Site Installer software > Cost effective installation solution |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CIOP-7273 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Warranty | 3 Years |
FAQ’s for Eaton Addressable Door Release Module (CIOP-7273)
Product Specification for Eaton Addressable Door Release Module (CIOP-7273)
| Product: | Eaton Addressable Door Release Module |
| Catalogue no.: | CIOP-7273 |
| Dimensions: | W:180mm x H: 129mm x L/D:60mm |
| EN Certification standards: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt18 (Input/Output Devices) |
| System Topology: | Addressable (soft) |
| Loop operating voltage: | 18.5 - 30V dc |
| Loop Quiescent current: | 450 μa |
| PSU Operating voltage: | 24 - 30V dc |
| PSU Quiescent current (relays energised): | 11mA @ 24V, 50mA @ 30V |
| PSU Alarm Current (relays de-energised): | 11ma @ 24V, 12mA @ 30V |
| PSU Mains fault input: | Dry contact input, S/C for healthy, O/C for fault |
| PSU Battery fault input: | Dry contact input, S/C for healthy, O/C for fault |
| Humidity (Non-condensing): | 0 - 95% RH |
| Operating temperature: | -5oC to 40oC |
| IP rating: | IP40 |
| Cable entry: | Top |
| Lamp type included: | Halogen free |
| Colour: | Light grey |
| Material: | ABS/Plastic |
| Warranty: | 3 years |
| Weight: |
0.28 kg |
