Eaton Cooper Intelligent Addressable LED Beacon (CAB382)
SKU
CAB382
£67.81
£56.51
Eaton Cooper Intelligent Addressable LED Beacon (CAB382)
- Buy 10 for £66.23 £55.19 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton Cooper Intelligent Addressable LED Beacon (CAB382)

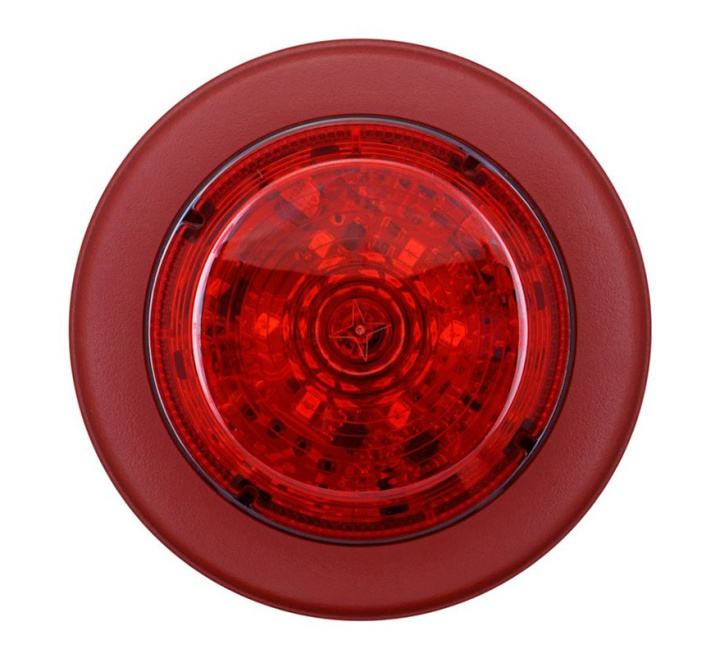

The Eaton CAB382 intelligent addressable loop connected LED beacon is available to complement audible alarms for use in areas either where people may be present who have impaired hearing or areas with high ambient noise levels.
The CAB382 is compatible with Eaton’s range of intelligent addressable fire systems.
This device is designed for both wall and ceiling mounting, has a built in short circuit isolator and is soft addressed for ease of installation.
Key Features of the CAB382 |
|---|
|
> Red housing
> Red flash > Loop powered > Soft addressed > Integral short circuit Isolator > High efficiency design > High output LED beacon > Low profile design > Quick and simple to install > High efficency visual unit > Low current consumption > First fix back box > Easy to maintain/service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CAB382 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Colour | Red |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Cooper Intelligent Addressable LED Beacon (CAB382)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Intelligent Addressable LED Beacon (CAB382)
| Product: | Eaton Addressable Beacon |
| Catalogue no.: | CAB382 |
| Dimensions: | Dia: 93mm x D:53mm |
| No. of modes:: |
1 |
| Alarm current: |
<4.1 mA |
| Electricity consumption: |
.0041A |
| Nominal voltage: | 28V dc |
| Standby current: | <250 μA |
| Flash frequency: | 1/2 Hz |
| Standby time up to: |
0 hour |
| Power: | 0.1148W |
| Operating temperature: |
-10oC to +55oC (95% humidity non-condensing) |
| Cable entry: | Rear |
| IP rating: | IP54 |
| System typology: | Addressable (soft) |
| Material: | PC/ABS |
| Integrated function: | Flashlight |
| System wiring: | 2.5mm |
| Lamp type: | LED not exchangeable |
| Light colour: | Red |
| Colour housing / lens: | Red / Red |
| Mounting: | Surface, wall (internal) |
| Warranty: | 3 year |
| Weight: |
0.15 kg |
