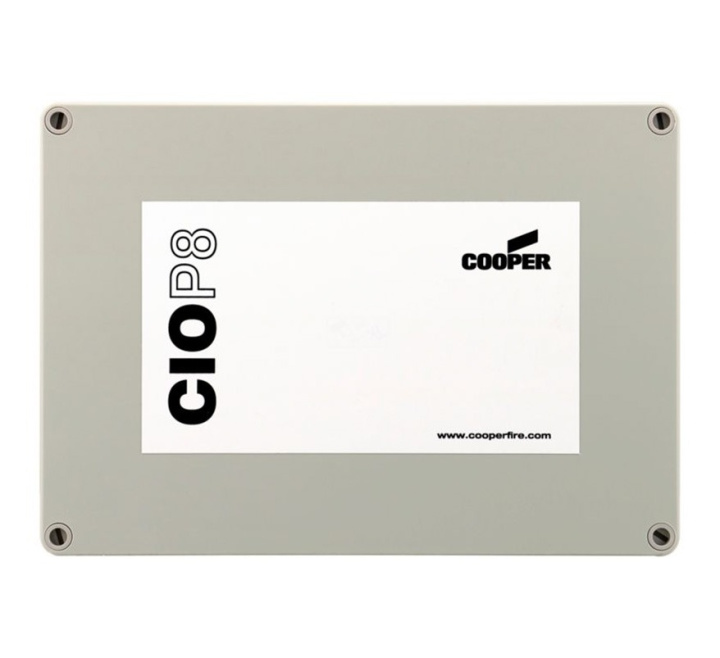

Eaton Cooper Addressable 8 Way Mimic Relay Board (4 In, 8 Out) (CIOP8)
Product Details for Eaton Cooper Addressable 8 Way Mimic Relay Board (4 In, 8 Out) (CIOP8)
The CIOP8 addressable mimic relay board is an 8 way soft addressing output module, incorporating an integral short circuit isolator.
Both the CIOP4 and the CIOP8 mimic relay boards are fully compatible with the current range of Cooper intelligent addressable control panels. The units are suitable for switching low voltage (24V dc at 1A maximum), via a set of non-latching relay contacts.
The flexibility of these modules is further enhanced by the fact that each output can be programmed for a range of triggers such as disablement, fault, fire, test panel, test zone pre-alarm, fire routing equipment, fire protecting equipment and reset with up to 16 different trigger sources per output.
The trigger source can be global, by panel, by loop, by zone or by address. The logic is available in both OR & AND functions.
These units have an additional 4 inputs which can initiate a reset, silence, evacuate and test function.
They can be programmed using the CF3000 programmable site installer software and downloaded using the RS232 port.
Key Features of the CIOP8 |
|---|
|
> 4 Inputs, 8 Outputs
> Loop powered > Units can be soft or hard addressed > Integral short circuit isolator > Single address > PCB version incorporates 4 inputs: - Reset - Silence - Evacuate - Test > 16 settings per output > Trigger types: fire, fault, disablement, test, pre- alarm, FRE, FPE, reset > Trigger source: global, by panel, by loop, by zone, by address > Logic functions (OR and AND) > Quick and simple to install > Pluggable terminals for ease of wiring > Programmable via site installer software > Cost effective installation solution |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CIOP8 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Warranty | 3 Years |
FAQ’s for Eaton Cooper Addressable 8 Way Mimic Relay Board (4 In, 8 Out) (CIOP8)
Product Specification for Eaton Cooper Addressable 8 Way Mimic Relay Board (4 In, 8 Out) (CIOP8)
| Product: | Eaton Addressable 8 Way Mimic Relay Board, 4 In 8 Out |
| Catalogue no.: | CIOP8 |
| Dimensions: | W:252mm x H: 180mm x L/D:88mm |
| System Topology: | Addressable (soft) |
| Operating loop voltage: | 18.5 - 30V dc |
| Current: | 1A max. |
| Quiescent current: |
6mA (nom) |
| Humidity (Non-condensing): | 0 - 95% RH |
| IP rating: | Boxed - IP65 |
| Recommended loop/cable: | FireTuff, FP200, MICC |
| DIN rail compatible: | No |
| Cable entry: | Top |
| Lamp type included: | Halogen free |
| Colour: | Light grey |
| Material: | ABS/Plastic |
| Warranty: | 3 years |
| Weight: |
0.874 kg |
