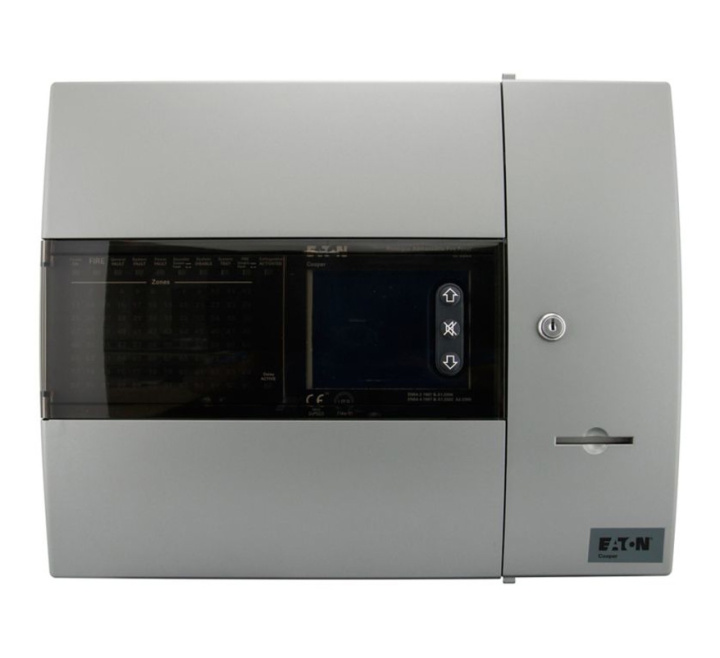

Eaton CF3000 4 Loop Addressable Fire Control Panel with Integral Printer & Network Card (CF30004GPNC)
Discontinued
Alternative Products
Product Details for Eaton CF3000 4 Loop Addressable Fire Control Panel with Integral Printer & Network Card (CF30004GPNC)
The Eaton CF30004GPNC is a high-specification intelligent 4 loop addressable control panel with integral printer and network card, but is also available in various loop configurations. These panels combine sophisticated functionality with simple operation and an aesthetically pleasing design.
The large capacity, ability to support complex cause and effect programming and wide range of user controllable functions make the system suitable for a diverse range of projects from sheltered housing to large office developments.
The CF3000 uses soft addressing to minimise installation time and remove the potential for error associated with manual addressing. It can operate as a stand alone panel or as part of a networked system. They have powerful programming options that allow configurable control over whether messages from specific panels are transmitted around the network or remain local.
An extensive range of compatible intelligent addressable systems ancillaries are available to work with the CF3000 all of which incorporate an integral short circuit isolator to provide maximum protection against short circuits on the external loop.
Key Features of the CF30004GPNC |
|---|
|
> 4 loops
> Up to 200 addresses per loop > Full network capability up to 126 panels > Event History Buffer (9,999 events) with Date/Time stamp > Soft addressing > Large versatile touch screen user interface > Multi-language selection capability > c/w Integral printer & Network Card > Integral battery and power supply > Flexible cause and effect programming > Simple to operate end user touch-screen interface > Flexible distributed network capability > Full range of compatible accessories > Easy to design system cause and effect using site installer software > Full system integrity with Eaton’s managed protocol |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CF30004GPNC |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 4 |
| Max No. of Loops Possible | 4 |
| Protocol Compatibility | Eaton |
| Warranty | 1 Year |
FAQ’s for Eaton CF3000 4 Loop Addressable Fire Control Panel with Integral Printer & Network Card (CF30004GPNC)
Product Specification for Eaton CF3000 4 Loop Addressable Fire Control Panel with Integral Printer & Network Card (CF30004GPNC)
| Product: | Eaton Addressable 4 Loop Control Panel, c/w Integral Printer & Network Card |
| Catalogue no.: | CF30004GPNC |
| Dimensions: | W:497mm x H:397mm x D:180mm |
| Standards: | EN54 Pt2 1997, A1:2006 EN54 Pt 4 1997, A1:2002 & A2:2006 EN54 Pt13:2005 |
| No. of loops: |
4 |
| Addresses per loop: |
200 |
| No. of conventional sounder circuits: | 4 monitored for open & short circuit |
| Auxiliary fire routing equipment output (monitored): | 24V 30mA (max) |
| Auxiliary fire protection equipment output (monitored): | 24V 30mA (max) |
| Auxiliary fault routing equipment output (monitored): | 12V 30mA (max) |
| System operating voltage: | 24V dc (nom) |
| Mains input supply: | 230V ac +10%/-15% |
| Class change facility: | Terminals for connection of external contacts, can also be instigated via input interface |
| Auxiliary relay: | One set of change over contacts, operated in the event of fire activation |
| Output ports: |
RS485, RS232 for connection of repeaters etc |
| Standby duration: |
Dependant on loop loading and battery configuration |
| Batteries: | 2 x 12Ah |
| Operating temperature: | -5oC to +40oC (93% max humidity, non condensing) |
| Construction: | Back box - mild steel, door - PC/ABS |
| Colour: | Graphite |
| IP rating: | IP30 |
| Cable entry: | Top: 31 entry cable knockouts (20mm) Rear:12 entry cable knockouts (20mm) |
| System networking: | Fully networkable up to 126 panels (requires additional network card - 1 per panel) |
| Weight: | 18 kg |
