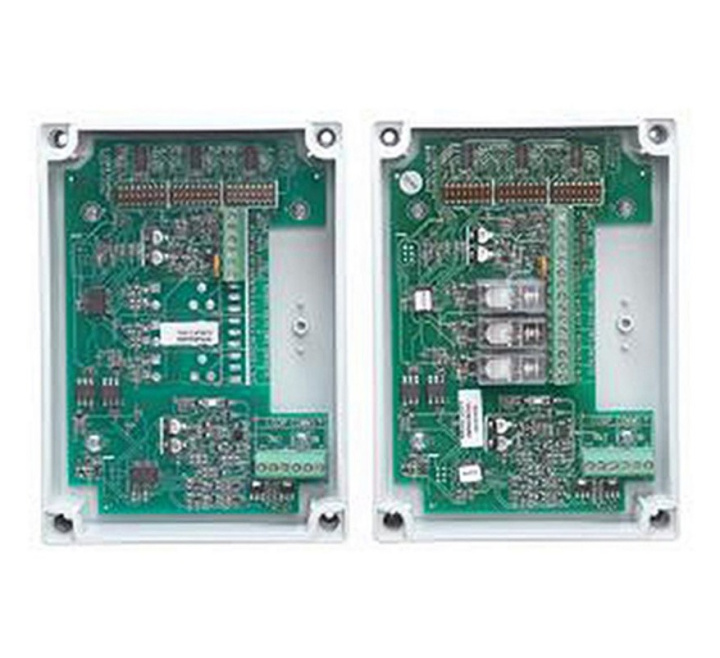

Eaton Cooper Addressable 4-20mA Interface (CIT420)
SKU
CIT420
£140.26
£116.88
Eaton Cooper Addressable 4-20mA Interface (CIT420)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton Cooper Addressable 4-20mA Interface (CIT420)
The Eaton CIT420 Addressable 4-20mA Interface is compatible with Eaton analogue addressable control panels.
This interface has a unique address on the loop.
Key Features of the CIT420 |
|---|
|
> Requires external power supply
> Soft addressed > Integral short circuit isolator > Single address > Programmable levels of sensitivity |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CIT420 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Cooper Addressable 4-20mA Interface (CIT420)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Addressable 4-20mA Interface (CIT420)
| Product: | Eaton Addressable 4-20mA Interface |
| Catalogue no.: | CIT420 |
| Dimensions: | W:147mm x H:88mm x L/D:57mm |
| EN Certification standards: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt18 (Input/Output Devices) |
| System Topology: | Addressable (soft) |
| DIN rail compatible: | No |
| Cable entry: | Top |
| Lamp type included: | Halogen free |
| Colour: | Light grey |
| Material: | ABS/Plastic |
| Warranty: | 3 years |
| Weight: |
0.25 kg |
