Eaton Cooper Addressable 4-20mA Interface with Relay (CIT420R)
SKU
CIT420R
£202.49
£168.74

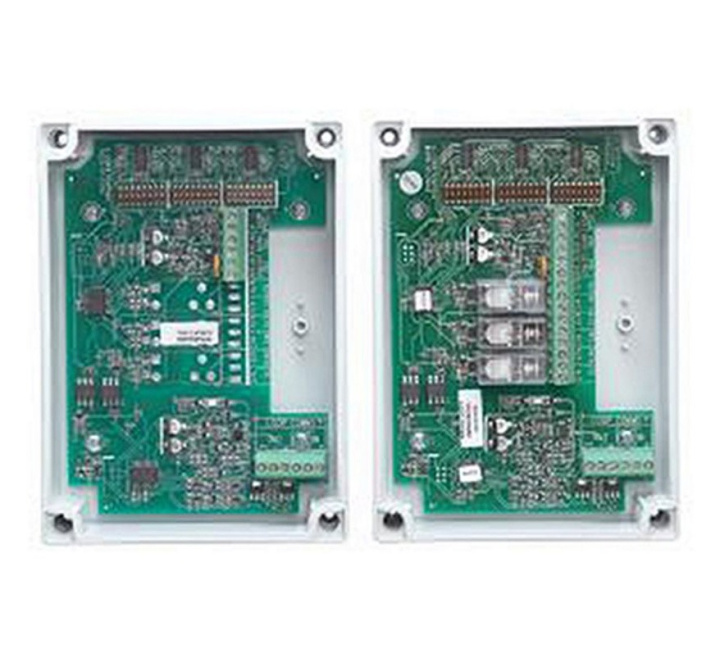

Eaton Cooper Addressable 4-20mA Interface with Relay (CIT420R)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton Cooper Addressable 4-20mA Interface with Relay (CIT420R)
The Eaton CIT420R 4-20 mA addressable interface is compatible with Eaton analogue addressable control units. This interface has a unique address on the loop. Each relay is programmable with its own sensitivity level which can be expressed as a percentage of L.E.L (Explosion Limit Level) or PPM (Parts per million) through the arrangement of the DIL microswitches.
Key Features of the CIT420R |
|---|
|
> Eaton 4-20mA Interface with Relay
> Requires external power supply > Soft addressed > Integral short circuit isolator > Single address > Programmable levels of sensitivity |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CIT420R |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Cooper Addressable 4-20mA Interface with Relay (CIT420R)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Addressable 4-20mA Interface with Relay (CIT420R)
| Product: | Eaton Addressable 4-20mA Interface, with Relay |
| Catalogue no.: | CIT420R |
| Dimensions: | W:147mm x H:88mm x L/D:57mm |
| EN Certification standards: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt18 (Input/Output Devices) |
| System Topology: | Addressable (soft) |
| DIN rail compatible: | No |
| Cable entry: | Top |
| Lamp type included: | Halogen free |
| Colour: | Light grey |
| Material: | ABS/Plastic |
| Warranty: | 3 years |
| Weight: |
0.25 kg |
