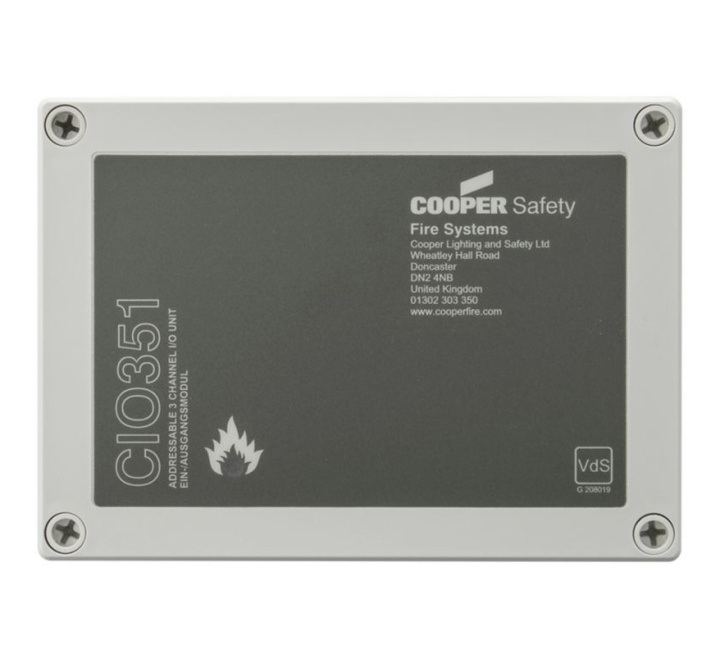

Eaton Cooper Addressable 3 Channel Input/Output Unit (Triple Address) (CIO351SST)
SKU
CIO351SST
£171.53
£142.94
Eaton Cooper Addressable 3 Channel Input/Output Unit (Triple Address) (CIO351SST)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton Cooper Addressable 3 Channel Input/Output Unit (Triple Address) (CIO351SST)
The CIO351SST 3 channel I/O unit enables simple interfacing between the fire system and other equipment such as nurse call systems or access control systems. The inputs are fully monitored for open and short circuits. The CIO351SST resets on system reset and offers a separate address per I/O channel (triple address).
Key Features of the CIO351SST |
|---|
|
> Triple address
> Resets on reset - recognised as 3 addresses > Soft addressed > Integral short circuit isolator > 3 separate inputs and 3 separate outputs > Inputs monitored for open and short circuits > Quick and simple to install > No hard addressing required (Plug and play) > Unit takes 3 inputs, and 3 outputs - Only 1 address required to monitor and control, saving on equipment and installation (main unit) |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CIO351SST |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Cooper Addressable 3 Channel Input/Output Unit (Triple Address) (CIO351SST)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Addressable 3 Channel Input/Output Unit (Triple Address) (CIO351SST)
| Product: | Eaton Addressable 3 Channel Input Output Unit, Resets on reset - recognised as 3 addresses |
| Catalogue no.: | CIO351SST |
| Dimensions: | W:180mm x H: 129mm x L/D:60mm |
| EN Certification standards: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt18 (Input/Output Devices) |
| System Topology: | Addressable (soft) |
| Operating voltage: | 18 - 30V dc |
| Quiescent current: | 310 μa |
| Max. switching voltage: | 50V ac or 30V dc |
| Output relay contact rating: | 1A @ 30V resistive, 0.5A inductive |
| Humidity (Non-condensing): | 0 - 95% RH |
| Operating temperature: | -10oC to +60oC |
| IP rating: | IP40 |
| DIN rail compatible: | No |
| Cable entry: | Top |
| Lamp type included: | Halogen free |
| Colour: | Light grey |
| Material: | ABS/Plastic |
| Warranty: | 3 years |
| Weight: |
0.23 kg |
