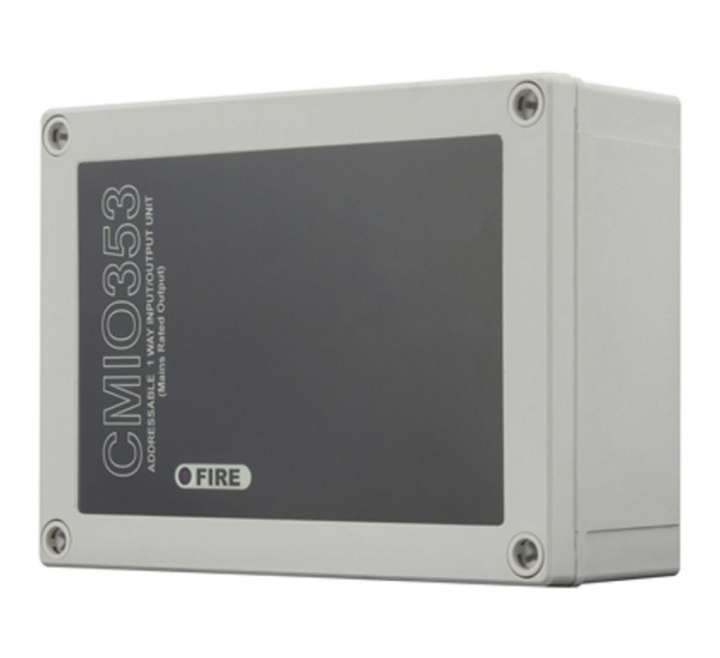

Eaton Cooper Addressable 230V Relay Input/Output Unit (CMIO353)
SKU
CMIO353
£131.99 £109.99
Eaton Cooper Addressable 230V Relay Input/Output Unit (CMIO353)
- Buy 10 for £129.96 £108.30 each and save 2%
Product Details for Eaton Cooper Addressable 230V Relay Input/Output Unit (CMIO353)
The CMIO353 230V ac relay unit enables simple interfacing between the fire system and other equipment such as nurse call systems or access control systems.
The ability of the output unit to switch mains also makes the unit ideal for plant control or mains powered door holders. The input is monitored for open and short circuits therefore can be used for fire input applications such as monitoring sprinkler flow switches.
Key Features of the CMIO353 |
|---|
| > Soft addressed > Integral short circuit isolator > Single address > Mains rated relay unit > Input monitored for open and short circuits > Quick and simple to install > No hard addressing required (Plug and play) > Achieves simplified inter-panel interfacing |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CMIO353 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Cooper Addressable 230V Relay Input/Output Unit (CMIO353)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Addressable 230V Relay Input/Output Unit (CMIO353)
| Product: | Eaton Addressable 230V Relay Input Output Unit |
| Catalogue no.: | CMIO353 |
| Dimensions: | W:180mm x H:129mm x L/D:60mm |
| EN Certification standards: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt18 (Input/Output Devices) |
| System topology: | Addressable (soft) |
| Operating voltage: | 18.5 - 30V dc |
| Quiescent current: | 310μA (nom) |
| Max. switching voltage: | 230V - 250V ac (nom) |
| Max. switching current: | 8A |
| Operating temperature: | -10oC to +60oC |
| Humidity (non condensing): | 0 - 95% RH |
| Construction: | PC/ABS |
| IP rating: | IP65 |
| Recommended loop/cable: | Fire Tuff, FP200, MICC |
| DIN rail compatible: | No |
| Lamp type included: |
