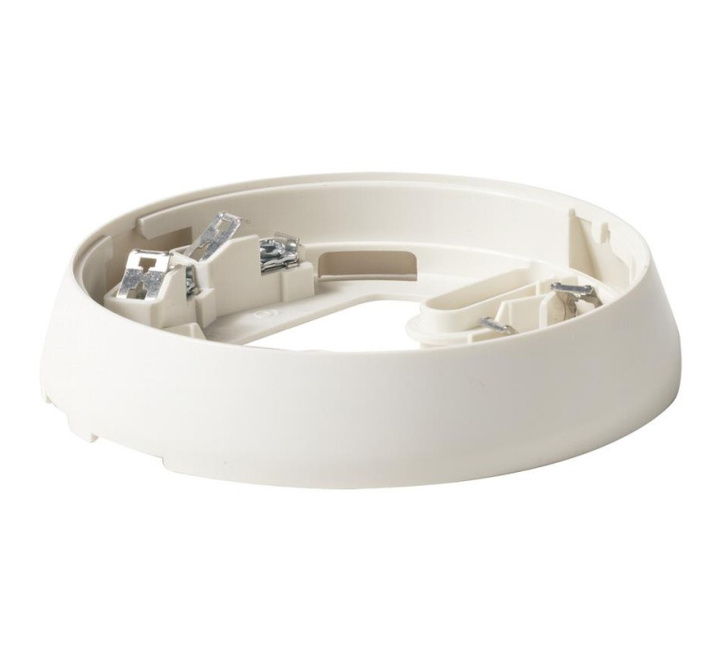

Siemens DB110RD Cerberus FIT Conventional Diode Detector Base (Increased Sensitivity) (S54372-F8-A1)
SKU
S54372-F8-A1
£8.78
£7.32
Siemens DB110RD Cerberus FIT Conventional Diode Detector Base (Increased Sensitivity) (S54372-F8-A1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens DB110RD Cerberus FIT Conventional Diode Detector Base (Increased Sensitivity) (S54372-F8-A1)
Siemens DB110RD Detector Base (parameter set 2) (S54372-F8-A1) Conventional / collective detector base complete with a resistor for parameter setting and continuity diode for all 110-series point detectors. Selects parameter set 2 within detectors.
For recess supply wiring and for surface supply wiring, cable diameter up to 8 mm.
For OP110, HI110, HI112 and OH110 Only.
Key Features of the S54372-F8-A1 |
|---|
|
> Conventional detector base with diode for all point detectors of the 110 series
> Selects parameter set 2 within the point detector > Increased sensitivity > For recess supply wiring > For surface-mounted supply lines with cables up to max. Ø 8 mm |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | DB110RD |
| Product Series | Cerberus FIT |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens DB110RD Cerberus FIT Conventional Diode Detector Base (Increased Sensitivity) (S54372-F8-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens DB110RD Cerberus FIT Conventional Diode Detector Base (Increased Sensitivity) (S54372-F8-A1)
| Product: | Siemens DB110RD Detector Base |
| Product code: | S54372-F8-A1 |
| Dimensions: | Diameter:117mm x H:23mm |
| Colour: |
Pure white (RAL 9010) |
| Cable capacity: | 0.2 - 1.6mm2 |
| Weight: | 0.063 kg |
