SKU
ULED/M3/P
£286.54 £238.78

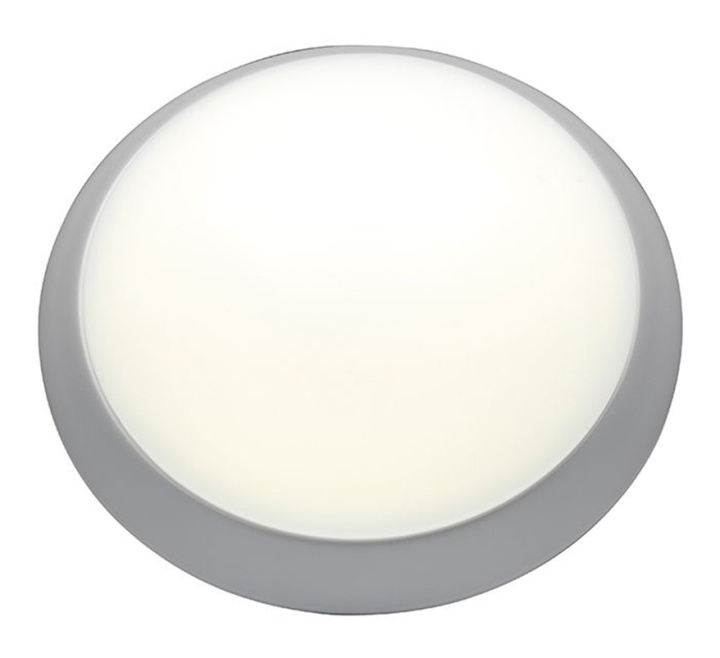

LuxIntelligent ULED/M3/P Circu-LED Luminaire, Surface Mount, Maintained, Addressable - 0.40M Diameter
LuxIntelligent ULED/M3/P is a maintained, addressable, 0.40m diameter Circu-LED luminaire. Provides 3-hour emergency duration from integral high-temperature nickel cadmium batteries. Surface mounted and ideal for stairwells. White body with twist-on, fire-retardant PMMA diffuser. Easy to install via 20mm entry at the centre of the back plate.
1920 lumens mains and 410 lumens emergency output. Not prone to common issues found in the 28W T5 counterpart fittings.
May be used for standard switched mains lighting but will automatically provide emergency power should there be a loss of local mains supply. Fully supports the LuxIntelligent test system.
Key Features |
---|
> Compatible with LuxIntelligent test system > Addressable > 0.40m diameter > White body > Surface mounted > 3-hr maintained unit > High output LEDs > Ideal for stairwells > Low energy consumption > 50,000 hours LED life > EN60598.2.22 compliant |
Manufacturer | Advanced Electronics |
---|---|
MPN | ULED/M3/P |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Dimensions: | 395mm diameter x H:113mm |
Colour temperature: | 4500K |
Light output: | 1920 lumens (mains) 410 lumens (emergency) |
Light Source: | White LEDs (2800 lm) |
Construction: | White aluminium base with twist-on PMMA diffuser |
Geartray: | Integral to base |
Cable entry: | 20mm hole (centre of back plate) |
Insulation class: | Class 1 |
Supply Voltage: | 230 V @ 50Hz |
Supply power: | 22.7W (mains) 26.1W (emergency) |
Charge power (typical): | 3.5W (emergency) |
Battery: | 1 x 6.0V 2.0Ah NiCd |
IP rating: | IP20 |
Ambient Temperature: | 25oC |
Weight: | 1.3kg (mains) 3.4kg (emergency) |
