Global Fire Chameleon RS422 Network Communication Card (GFE-NETCARD-D)
SKU
GFE-NETCARD-D
£118.70
£98.92
Global Fire Chameleon RS422 Network Communication Card (GFE-NETCARD-D)
- Buy 10 for £116.88 £97.40 each and save 2%
- Buy 20 for £113.23 £94.36 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Global Fire Chameleon RS422 Network Communication Card (GFE-NETCARD-D)

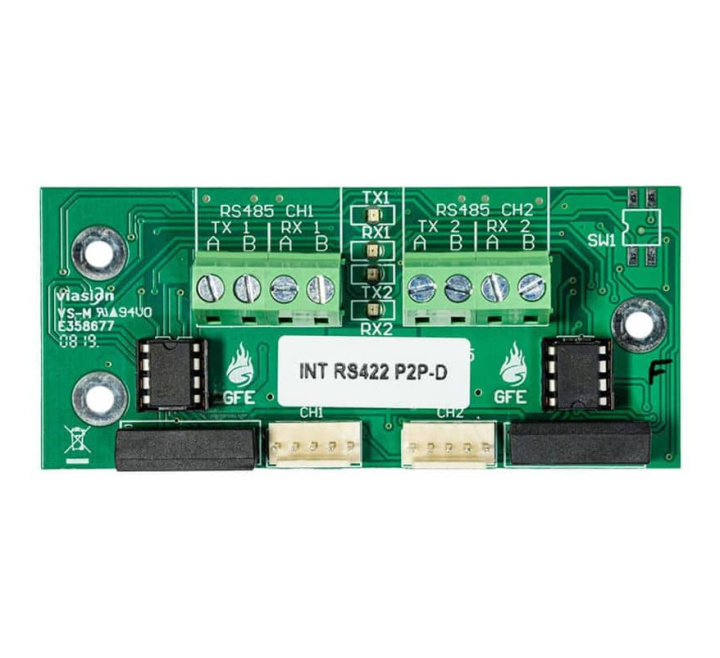

The Global Fire INT-RS422-P2P-D interface/network card allows a double peer-to-peer RS422 connection, making it possible to build a closed loop, ‘daisy-chained’ communication network between GFE’s CHAMELEON Panels (G-One, GEKKO, OCTO+, NODE+ and CHAMELEON REPEATER).
The INT-RS422-P2P-S interface allows one single RS422 connection. It is mainly used for integration to third-party BMS systems or for a single extension connection to a CHAMELEON Display.
Key Features of the GFE-NETCARD-D |
|---|
|
> Full electrical isolation between connections
> Independent network paths > Compatible only with GFE CHAMELEON Panels > 1200m maximum cable length per interface > Allows a single RS422 connection |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | GFE-NETCARD-D |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Global Fire Chameleon RS422 Network Communication Card (GFE-NETCARD-D)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire Chameleon RS422 Network Communication Card (GFE-NETCARD-D)
| Dimensions: | H:40mm x L:90mm x W:20mm |
| Supply current: |
14 mA |
| Recommended cable: | Cat 5 cable as defined by the EIA/TIA/ANSI568 spec (<17 pF/ft @ 100 ohm) |
| Max. cable distance: | 1200m per connection |
| Operating/storage temp: |
-10oC to +50oC, 85% RH non-condensing humidity |
| Protection: | IP30 |
| Compatible panels: | All CHAMELEON Panels (G-One, GEKKO, OCTO+, NODE+ and CHAMELEON REP) |
| Weight: | 33g |
