Cameo Orbital RS4 4-Line Disabled Refuge/Toilet Alarm System c/w Batteries, Surface Mount - Radial Wired (ORB/R/RS4/OLED/S)
SKU
ORB/R/RS4/OLED/S
£1,435.20
£1,196.00
Cameo Orbital RS4 ORB-R-RS4-OLED-S 4-way Combined Disabled Refuge & Disabled Toilet Alarm System c/w batteries. Surface mounted, Radial wired
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Cameo Orbital RS4 4-Line Disabled Refuge/Toilet Alarm System c/w Batteries, Surface Mount - Radial Wired (ORB/R/RS4/OLED/S)

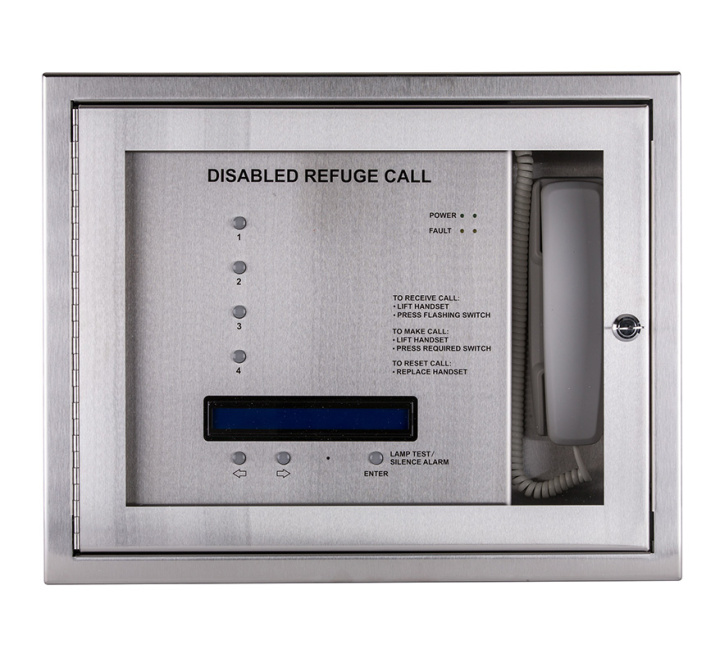

The Cameo Orbital RS4 ORB-R-RS4-OLED-S is a 4-way Combined Disabled Refuge & Disabled Toilet Alarm System. Supplied with batteries. Surface mounted, Radial wired.
Key Features of the ORB/R/RS4/OLED/S |
|---|
|
> Can display up to 32 toilet alarms
> 4 way Disabled Refuge & Disabled Toilet Alarm System > Supplied with batteries > Stainless steel Surface enclosure with black screen print > Glazed lockable door > Built in alphanumeric blue OLED screen for disabled refuge zone description and '32' disabled toilet alarm zone indication > Group or all call function > Wire 2 core cable from disabled toilet PSU/sounder unit to nearby disabled refuge station (terminals supplied) > Master panel can answer or call out by pressing separate call switches/indications for each disabled refuge location > Clear full duplex audio conversation, once connected > Radially wired in 2 core 1.5mm enhanced fire rated cable > Volt free changeover contact for remote call-in / fault reporting > Fire panel inhibit input fitted > Battery support 24 + 3 hours > BS5839 Pt 9 compliant > CE2019 certified |
| Brand | Cameo Systems |
|---|---|
| Manufacturer Part No. | ORB/R/RS4/OLED/S |
Write Your Own Review
FAQ’s for Cameo Orbital RS4 4-Line Disabled Refuge/Toilet Alarm System c/w Batteries, Surface Mount - Radial Wired (ORB/R/RS4/OLED/S)
No questions yet. Be the first to ask the question!
Product Specification for Cameo Orbital RS4 4-Line Disabled Refuge/Toilet Alarm System c/w Batteries, Surface Mount - Radial Wired (ORB/R/RS4/OLED/S)
| Product Code: | ORB-R-RS4-OLED-S |
| Product description: | 4-way Combined Disabled Refuge & Disabled Toilet Alarm System |
| Dimensions: Surface back box |
H:400mm x W:500mm x D:112mm |
|
Enclosure: |
Stainless steel surface enclosure with black screen print and lockable glazed door |
|
Indicator: |
Alphanumeric blue OLED screen for disabled refuge zone description and '32' disabled toilet alarm zone indication |
| Communication: | Master panel can answer or call out by pressing the separate call switches and indications for each disabled refuge location. Group or all call can be selected. Clear, full duplex audio conversation, once connected. End call by replacing master handset. |
| Wiring: | Radially wired in 2 core, 1.5mm enhanced fire rated cable. 2 core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection. |
| Changeover contact: | Volt free. Provided for remote call in and fault reporting |
| Input: | Fire panel inhibit input fitted as standard |
| Battery: | Supported 24 + 3 hours |
|
Mounting: |
Surface |
