Cameo Orbital RS4 4-Line Disabled Refuge/Toilet Alarm System c/w Batteries, Flush Mount - Loop Wired (ORB/L/RS4/OLED/F)
SKU
ORB/L/RS4/OLED/F
£1,279.20 £1,066.00
Cameo Orbital RS4 ORB-L-RS4-OLED-F 4-way Combined Disabled Refuge & Disabled Toilet Alarm System c/w batteries. Flush mount, Loop wired
The Cameo Orbital RS4 ORB-L-RS4-OLED-F is a 4-way Combined Disabled Refuge & Disabled Toilet Alarm System. Supplied with batteries. Flush mount, Loop wired.

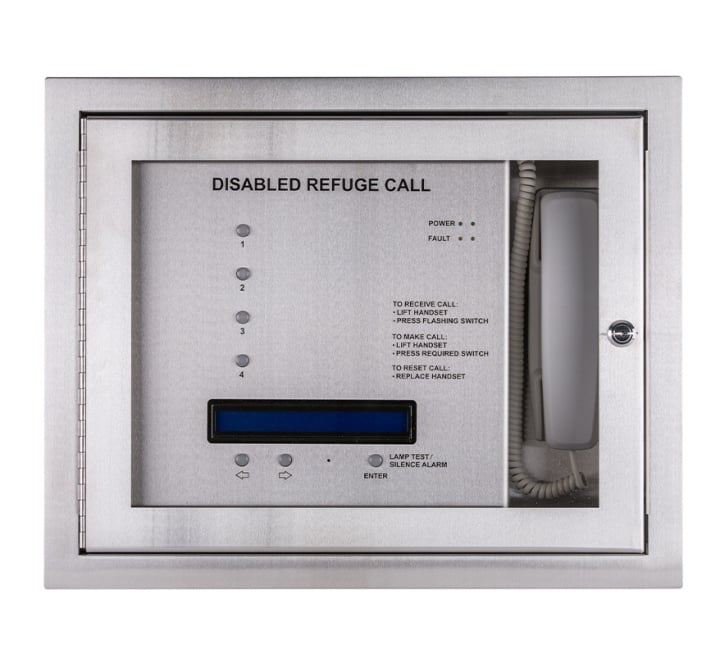

Stainless steel flush enclosure with black screen print and glazed lockable door. The master panel can answer or call out by pressing the separate call switches and indications for each disabled refuge location. The built-in alphanumeric blue OLED screen for disabled refuge zone description and ‘32’ disabled toilet alarm zone indication. Group or all call can also be selected. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset.
The disabled refuge outstations are loop wired in ‘4’ core ‘1.5’mm enhanced fire-rated cable. A volt-free changeover contact is provided for remote call in and fault reportng. A fire panel inhibit input is also fitted as standard. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2019 certified.
A simple two-core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection.
Key Features |
---|
> Can display up to 32 toilet alarms > 4 way Disabled Refuge & Disabled Toilet Alarm System > Supplied with batteries > Stainless steel Flush enclosure with black screen print > Glazed lockable door > Built in alphanumeric blue OLED screen for disabled refuge zone description and '32' disabled toilet alarm zone indication > Group or all call function > Wire 2 core cable from disabled toilet PSU/sounder unit to nearby disabled refuge station (terminals supplied) > Master panel can answer or call out by pressing separate call switches/indications for each disabled refuge location > Clear full duplex audio conversation, once connected > Loop wired in 2 core 1.5mm enhanced fire rated cable > Volt free changeover contact for remote call-in / fault reporting > Fire panel inhibit input fitted > Battery support 24 + 3 hours > BS5839 Pt 9 compliant > CE2019 certified |
Manufacturer | Cameo Systems |
---|---|
MPN | ORB/L/RS4/OLED/F |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Product Code: | ORB-L-RS4-OLED-F |
Product description: | 4-way Combined Disabled Refuge & Disabled Toilet Alarm System |
Dimensions: Flush back box Flushing flange |
|
Enclosure: | Stainless steel flush enclosure with black screen print and lockable glazed door |
Indicator: | Alphanumeric blue OLED screen for disabled refuge zone description and '32' disabled toilet alarm zone indication |
Communication: | Master panel can answer or call out by pressing the separate call switches and indications for each disabled refuge location. Group or all call can be selected. Clear, full duplex audio conversation, once connected. End call by replacing master handset. |
Wiring: | Loop wired in 2 core, 1.5mm enhanced fire rated cable. 2 core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation back box is supplied with terminals for this connection. |
Changeover contact: | Volt free. Provided for remote call in and fault reporting |
Input: | Fire panel inhibit input fitted as standard |
Battery: | Supported 24 + 3 hours |
Mounting: | Flush |
