Cameo Orbital RS2-TA 2-Line Disabled Refuge & Toilet Alarm Control Panel c/w Batteries, Flush Mount - Radial Wired (ORB/R/RS2F/TA)
SKU
ORB/R/RS2F/TA
£748.80 £624.00

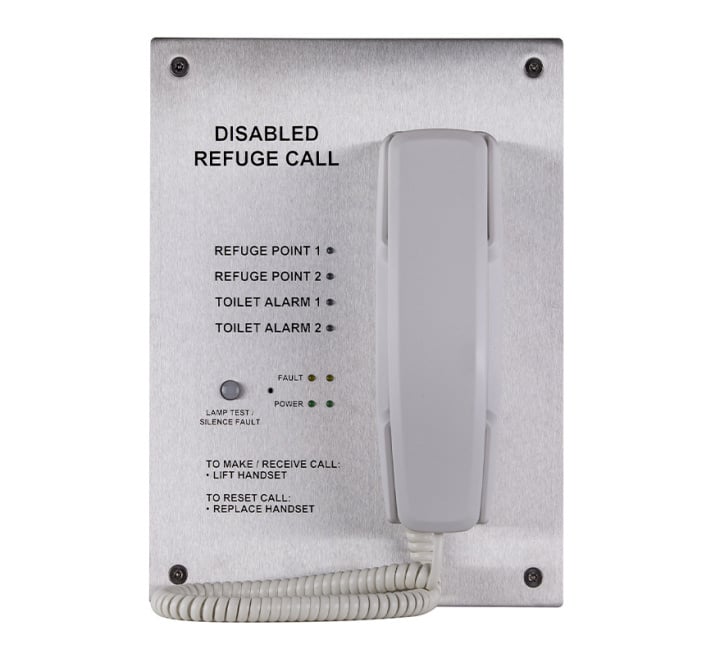

Cameo Orbital RS2 ORB-R-RS2F-TA 2-way Combined Disabled Refuge & Disabled Toilet Alarm System c/w batteries. Flush mounted, Radial wired
The Cameo Orbital RS2 ORB-R-RS2F-TA is a 2-way combined Disabled Refuge & Toilet Alarm System. Supplied with batteries. Flush mounted, Radial wired.
The combined master panel has a call indication for the disabled refuge and an alarm indication for disabled toilet. The master panel can answer or call out automatically to the disabled refuge location by lifting the master handset. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstation is radially wired in ‘2’ core ‘1.5’mm enhanced fire rated cable. The toilet alarm can be either wired to the disabled refuge outstation or master panel in a non fire rated ‘2’ core cable. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2019 certified. With flush mounting back box.
| Key Features |
|---|
| > 2 way Disabled Refuge & Disabled Toilet Alarm System > Supplied with batteries > Flush mounted > Stainless steel flush enclosure with black screen print > 2 separate blue toilet alarm LED indicators combined onto master panel > Wire 2 core cable from disabled toilet PSU/sounder unit to nearby disabled refuge station > Refuge outstation and master panel back box supplied with terminals > Master panel can answer or call out by pressing separate call switches/indications for each disabled refuge location > Clear full duplex audio conversation, once connected > Radially wired in 2 core 1.5mm enhanced fire rated cable > Volt free changeover contact for remote call-in / toilet alarm/ fault reporting > Fire panel inhibit input fitted > Battery support 24 + 3 hours > BS5839 Pt 9 compliant > CE2019 certified |
| Manufacturer | Cameo Systems |
|---|---|
| MPN | ORB/R/RS2F/TA |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Product Code: | ORB-R-RS2F-TA |
| Product description: | 2-way Combined Disabled Refuge & Disabled Toilet Alarm System |
| Dimensions: Front panel Flush back box |
|
Enclosure: | Stainless steel flush enclosure with black screen print |
Indicators: | Two separate blue call toilet alarm LED indicators are combined onto the master panel |
| Communication: | Master panel can answer or call out by pressing the separate call switches and indications for each disabled refuge location. Clear, full duplex audio conversation, once connected. End call by replacing master handset. |
| Wiring: | Radially wired in 2 core, 1.5mm enhanced fire rated cable. 2 core cable should be wired from the disabled toilet PSU/Sounder unit to the nearby disabled refuge outstation. The refuge outstation and master panel back box is supplied with terminals for these connections. |
| Changeover contact: | Provided for remote call in, toilet alarm and fault reporting |
| Input: | Fire panel inhibit input fitted as standard |
| Battery: | Supported 24 + 3 hours |
Mounting: | Flush |
