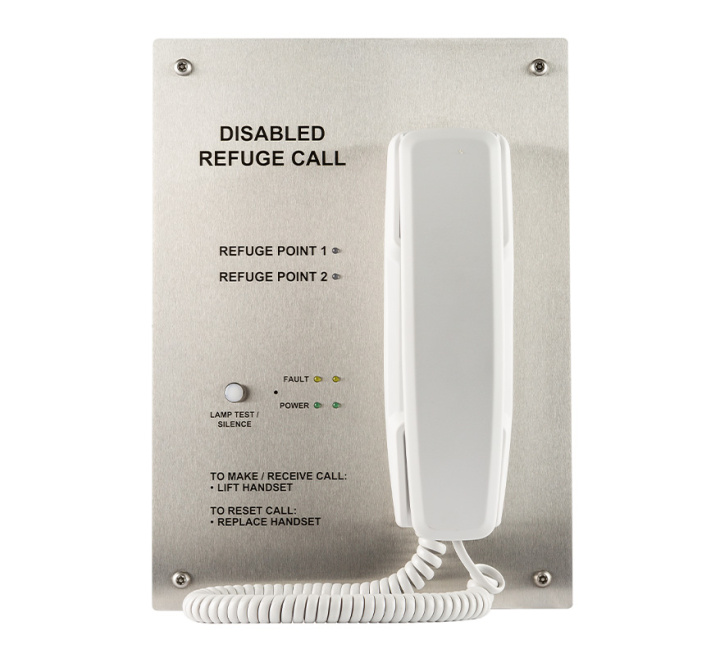

Cameo Orbital RS2 2-Line Disabled Refuge Control Panel c/w Batteries, Flush Mount - Radial Wired (ORB/R/RS2F)
SKU
ORB/R/RS2F
£686.40
£572.00
Cameo Orbital RS2, 2-line Central Unit, Radial Wired, includes batteries, Flush mount (ORB-R-RS2F)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Cameo Orbital RS2 2-Line Disabled Refuge Control Panel c/w Batteries, Flush Mount - Radial Wired (ORB/R/RS2F)
The Cameo Orbital RS2 (ORB-R-RS2F) is a 2-way radial wired Disabled Refuge Central Unit. With separate call indications for each disabled refuge location. The master panel can answer or call out automatically by lifting the master handset. Once connected a clear full duplex audio conversation can take place. The call is ended by replacing the master handset. The system outstations are radially wired in ‘2’ core ‘1.5’mm enhanced fire-rated cable. Battery support 24 + 3 hours. Fully compliant to BS5839 Pt9 and CE 2012 certified. With flush mounting back box.
Key Features of the ORB/R/RS2F |
|---|
|
> 2 way Disabled Refuge System
> Flush mounted > Stainless steel panel with black screen print > 2 separate blue call indications for each disabled refuge location > Lift master handset to answer or call out > Clear full duplex audio conversation > Radially wired in 2 core 1.5mm enhanced fire rated cable > Volt free changeover contact for remote call-in / fault reporting > Fire panel inhibit input fitted > Battery support 24 + 3 hours > BS5839 Pt 9 compliant > CE2019 certified |
| Brand | Cameo Systems |
|---|---|
| Manufacturer Part No. | ORB/R/RS2F |
Write Your Own Review
FAQ’s for Cameo Orbital RS2 2-Line Disabled Refuge Control Panel c/w Batteries, Flush Mount - Radial Wired (ORB/R/RS2F)
No questions yet. Be the first to ask the question!
Product Specification for Cameo Orbital RS2 2-Line Disabled Refuge Control Panel c/w Batteries, Flush Mount - Radial Wired (ORB/R/RS2F)
| Product Code: | ORB-R-RS2F |
| Product description: | 2-way Disabled Refuge System, radial wired |
| Dimensions: Front panel Flush back box |
|
|
Enclosure: |
Galvanised steel back box enclosure with a stainless steel panel with black screen print |
|
Indicators: |
Two separate blue call indications for each disabled refuge location |
| Communication: | Clear, full duplex audio conversation, once connected, by lifting the master handset |
| Wiring: | Radially wired in 2 core, 1.5mm enhanced fire rated cable |
| Changeover contact: | Provided for remote call in and fault reporting |
| Input: | Fire panel inhibit input fitted as standard |
| Battery: | Supported 24 + 3 hours |
|
Mounting: |
Flush |
