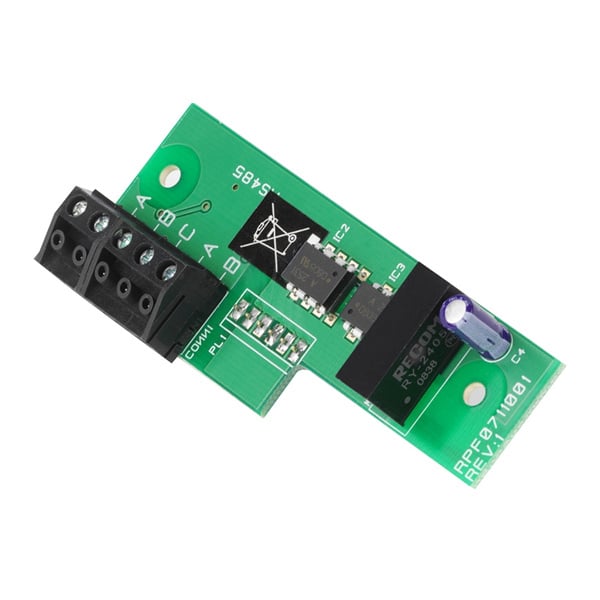

C-TEC XFP Network Driver Card for 32 Zone Panels (AFP711)
SKU
AFP711
£102.37
£85.31
C-TEC XFP Network Driver Card for 32 Zone Panels (AFP711)
- Buy 10 for £98.44 £82.03 each and save 4%
Limited Stock
Product Details for C-TEC XFP Network Driver Card for 32 Zone Panels (AFP711)
An optional system expansion device for use with XFP 1/2 Loop 32 Zone fire panels.
Allows the connection of up to eight XFP Repeaters or eight XFP Main panels (any mix) on an RS485 network.
One AFP711 card required per networked Main XFP 1/2 Loop 32 Zone panel (note that XFP510-16 and XFP510-32 repeaters include a network driver card as standard).
The AFP711 is NOT compatible with XFP Single Loop 16 Zone panels which require a CFP761 card for networking.
Key Features of the AFP711 |
|---|
|
> XFP Main Panels:
> Can be used to connect up to 8 XFP main panels (any mix) over a two-wire RS485 network of up to 1KM in length. > Each networked XFP can be programmed to accept Fires, Faults and Control actions such as Silence Alarm Sounders and Control Panel Resets from other panels. > Each XFP will accept Disablement commands for zones, sounders and output sets from other panels. > All panels monitored for network wiring faults. > Fires and faults on remote panels are displayed on local panels including the point description. > C&Es can be programmed into local panels dependent on which remote panel is in alarm. > The network supports the programming of site data into remote panels from a PC at a local panel. > Time and date is common to all panels. > All networked main panels require a network communication card. > It is not possible to mix XFP main panels and XFP repeaters on the same network. > XFP Repeater Panels: > Can be used to connect up to 8 XFP repeaters (any mix) to one XFP main panel. > Up to 500m of cable may be fitted to an XFP two-wire repeater network. > Each XFP repeater offers all the functions and controls of an XFP main panel. > The XFP main panel must have a network communication card fitted. > It is not possible to mix XFP main panels and XFP repeaters on the same network. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | AFP711 |
Write Your Own Review
FAQ’s for C-TEC XFP Network Driver Card for 32 Zone Panels (AFP711)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC XFP Network Driver Card for 32 Zone Panels (AFP711)
| Product dimensions (mm) | 31 W x 80 H x 22 D mm. |
| Weight | 16g. |
