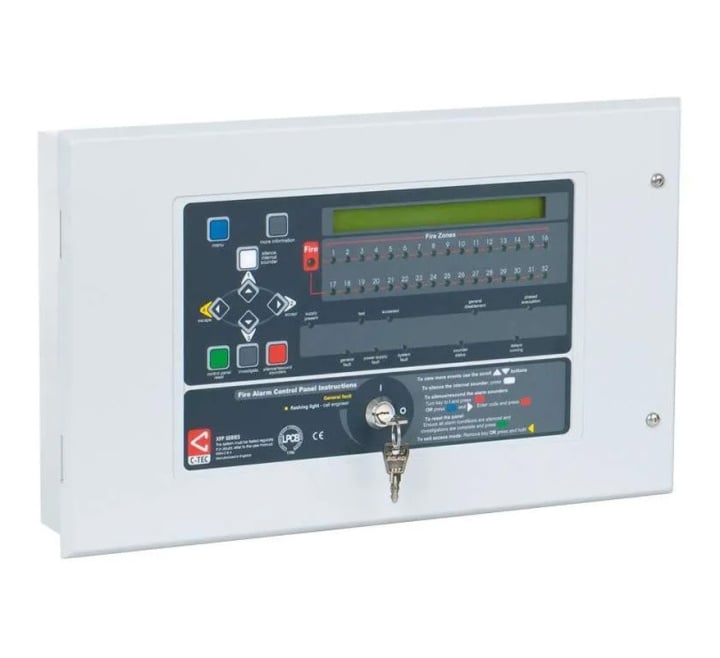

C-TEC XFP 2 Loop 32 Zone Addressable Fire Alarm Panel (CAST Protocol) (XFP502/CA)
SKU
XFP502/CA
£651.22 £542.68
C-TEC XFP 2 Loop 32 Zone Addressable Fire Alarm Panel (CAST Protocol) (XFP502/CA)
Product Details for C-TEC XFP 2 Loop 32 Zone Addressable Fire Alarm Panel (CAST Protocol) (XFP502/CA)
The C-TEC XFP502/CA 2 Loop 32 Zone Addressable Fire Alarm Panel is compatible with C-TEC's CAST digital fire alarm system protocol and fully certified to EN54 parts 2, 4 & 13.
With two powerful 40V 450mA loop drivers allowing the connection of up to 255 CAST devices per loop, the installation of a robust, feature-packed addressable fire detection and alarm system has never been easier.
CAST’s high speed data transmission and two speedy soft addressing options (automaic via the panel or manually via a handheld programmer/device tester), the CAST XFP panel is one of the most powerful two loop fire panels around. Also its ability to sit on a network of up to 8 XFP master panels, makes it ideal for use in small to medium sized stand-alone applications and larger, more sophisticated installations alike.
Key Features of the XFP502/CA |
|---|
| > Certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB) and EN54-13 by Kiwa Telefication. > Two independently programmable conventional sounder circuits. > Two programmable inputs. > A fault output relay and three programmable relay outputs with voltage free changeover contacts. > A selection of zone dependency/coincidence functions. > A day/night (building occupied/unoccupied) function. > An investigation delay period function. > Phased evacuation facility. > An alarm counter that records how many times the panel has been in alarm state. > Powerful short circuit protected loop drivers. > An integral EN54-4/A2 switch mode PSU. > Earth fault monitoring. > Combined keypad / keyswitch entry to Access Levels 2 and 3. > Intuitive PC programming softare. > Up to 8 XFP main panels (any variant) can be connected onto a two-wire RS485 non-redundant network. Alternatively, up to 8 XFP repeaters can be connected to any non-networked main panel > FULL compatibility with C-TEC's ENVISION Cloud-based Remote Access, Data Management, Commissioning & Maintenance Software, > Designed and manufactured in the UK. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | XFP502/CA |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 2 |
| Max No. of Loops Possible | 2 |
| Number of Zones | 32 |
| Protocol Compatibility | C-TEC CAST |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for C-TEC XFP 2 Loop 32 Zone Addressable Fire Alarm Panel (CAST Protocol) (XFP502/CA)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC XFP 2 Loop 32 Zone Addressable Fire Alarm Panel (CAST Protocol) (XFP502/CA)
| Approvals/certifications | LPCB certified to EN54-2 & 4 and Kiwa Telefication certified to EN54-13. |
| Protocol/compatibility | C-TEC CAST. |
| Mains supply | 230V 50/60Hz. |
| Mains rated current | 680mA maximum. |
| Internal power supply | 27Vdc nominal. |
| Total output current limited to | 3A @ 230Vac (Imax.A 270mA; Imin. 70mA). |
| Quiescent current | 100mA (2 loops unloaded). |
| Max battery size and type | 2 x 12V 7Ah VRLA connected in series. |
| No. of loop drivers | 2. |
| Max. loop output current | 450mA (40V max). |
| Max. loop length | 1KM. |
| Max. addressable devices per loop | 255. |
| No. of conventional sounder circuits | 2 (Max. length per circuit is 500m). |
| EOL resistor value | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold). |
| Max. sounder output current | 400mA. |
| Auxiliary relays | 3 x Programmable Relays (programmable from C&Es). 1 x Fault Relay (active when no faults are present). Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc. |
| Other outputs | 24V Aux. Power (19.5V min, 28V max). Protected by a resettable fuse. Max. current 100mA. |
| Auxiliary inputs | 2 x Programmable Inputs (programmable from C&Es). Connect to 0V to trigger, Max. input voltage 27V (non-latching). |
| PC connection | PC connection via RS232 molex connector (supplied in XFP507 upload/download software kit); No printer connection available. |
| Indicators | 2 line x 40 character backlit display; 32 Zonal LEDs, General Fire; Energised; Pre-Alarm; Remote Output Activated; Remote Output Disabled; Accessed; Disablement; Test; Silenced; General Fault; Syst |
| Connections | Fixed, largest acceptable conductor size 1mm2. |
| Expansion connections | 2-wire RS485 non-redundant network/repeater connection available via optional AFP711 network card. Max. 8 mains per network or 8 repeaters per non-networked main. Limit 1KM (main panel network) or |
| Product dimensions (mm) | 410 W x 250 H x 80 D mm (base); 439 W x 274 H x 7 D mm (lid). Hole required for semi-flush mounting = 412 W x 255 H x 50 D mm (requires XFP385 bezel). |
| Construction & finish | Metal. |
| IP Rating | IP30. |
| Weight | 4.5kg (without batteries). |
| Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
