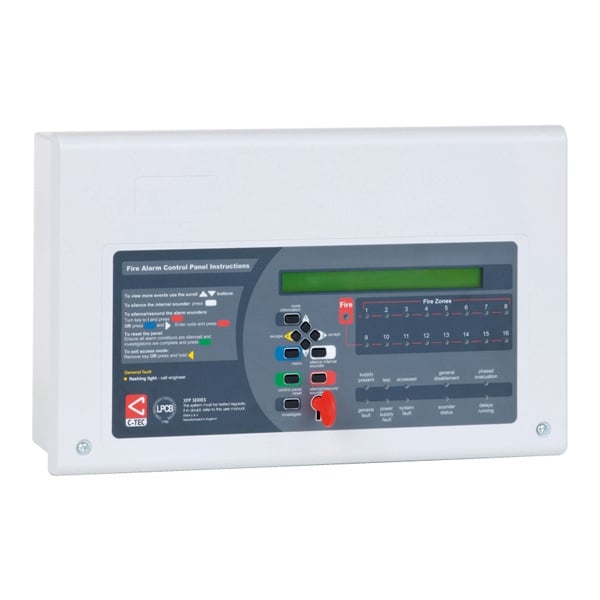

C-TEC XFP 1 Loop 16 Zone Addressable Fire Panel (XP95/Discovery Protocol) (XFP501E/X)
SKU
XFP501E/X
£416.98
£347.48
C-TEC XFP 1 Loop 16 Zone Addressable Fire Alarm Panel (XP95/Discovery Protocol) (XFP501E/X)
In Stock
Product Details for C-TEC XFP 1 Loop 16 Zone Addressable Fire Panel (XP95/Discovery Protocol) (XFP501E/X)
C-TEC’s XFP single loop 16 zone addressable fire alarm panel offers high performance at a very competitive price.
LPCB certified to EN54 parts 2 & 4, it is supplied in an attractive flush or surface mountable plastic enclosure, offers combined keypad or keyswitch entry to Access Levels 2 and 3 and is compatible with Apollo's XP95/Discovery protocol.
Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on network of up to 8 XFP master panels, it is one of Europe's best-selling entry-level addressable fire panels.
Packed full of engineering features - some of which are not available on more expensive alternatives (see feature list below) - the XFP501E/X is also fully compatible with C-TEC’s Hush Button fire alarm solution and its new range of EN54 certified addressable sounders and VADs.
Key Features of the XFP501E/X |
|---|
|
> Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB).
> Compatibility with Apollo’s XP95/Discovery protocol. > Two independently programmable conventional sounder circuits. > Two programmable inputs. > A fault output relay and three programmable relay outputs with voltage free changeover contacts. > A selection of zone dependency/coincidence functions. > A day/night (building occupied/unoccupied) function. > An investigation delay period function. > Phased evacuation facility. > An alarm counter that records how many times the panel has been in alarm state. > Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop. > An integral EN54-4/A2 switch mode power supply. > Adjustable contamination levels. > Earth fault monitoring. > Combined keypad / keyswitch entry to Access Levels 2 and 3. > 999 event monitoring. > An intuitive Windows based upload-download PC program. > Up to eight XFP main panels (any variant) can be connected onto a two-wire RS485 non-redundant network. Alternatively, up to eight XFP repeaters can be connected to any non-networked main panel. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | XFP501E/X |
| Product Series | XFP |
| Primary Power Source | Mains Powered (230V) |
| Max No. of Loops Possible | 1 |
| Number of Loops (Fitted) | 1 |
| Number of Zones | 16 |
| Protocol Compatibility | Apollo XP95, Apollo Discovery |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for C-TEC XFP 1 Loop 16 Zone Addressable Fire Panel (XP95/Discovery Protocol) (XFP501E/X)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC XFP 1 Loop 16 Zone Addressable Fire Panel (XP95/Discovery Protocol) (XFP501E/X)
| Approvals/certifications | Certified to EN54-2/4 by the LPCB (0832-CPD-0772). |
| Protocol/compatibility | Apollo XP95/Discovery. |
| Mains supply | 230V 50/60Hz. |
| Mains rated current | 350mA maximum. |
| Internal power supply | 27Vdc nominal. |
| Total output current limited to | 1.4A @ 230Vac (Imax.A 210mA; Imin. 40mA). |
| Quiescent current | 50mA (loop unloaded). |
| Max battery size and type | 2 x 12V 3.2Ah VRLA connected in series. |
| No. of loop drivers | 1. |
| Max. loop output current | 500mA (25V min; 34V max). |
| Max. loop length | 1KM. |
| Max. addressable devices per loop | 126. |
| No. of conventional sounder circuits | 2 (Max. length per circuit is 500m). |
| EOL resistor value | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold). |
| Max. sounder output current | 400mA. |
| Auxiliary relays | 3 x Programmable Relays (programmable from C&Es). 1 x Fault Relay (active when no faults are present). Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc. |
| Other outputs | 24V Aux. Power (19.5V min, 28V max). Protected by a resettable fuse. Max. current 100mA. |
| Auxiliary inputs | 2 x Programmable Inputs (programmable from C&Es). Connect to 0V to trigger, Max. input voltage 27V (non-latching). |
| PC connection | PC connection via RS232 molex connector (supplied in XFP507 upload/download software kit); No printer connection available. |
| Indicators | 2 line x 40 character backlit display; 16 Zonal LEDs, General Fire; Energised; Pre-Alarm; Remote Output Activated; Remote Output Disabled; Accessed; Disablement; Test; Silenced; General Fault; System Fault. |
| Connections | Fixed, largest acceptable conductor size 1mm2. |
| Expansion connections | 2-wire RS485 non-redundant network/repeater connection available via optional XFP761 network card. Max. 8 mains per network or 8 repeaters per non-networked main. Limit 1KM (main panel network) or 500M (repeater network). |
| Product dimensions (mm) | 380 W x 235 H x D 96mm; |
| Construction & finish | Plastic lid and base; RAL7035 textured. |
| IP Rating | IP30. |
| Weight | 1.8kg (without batteries). |
| Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
