C-TEC Conventional Single Zone Call Controller c/w 12V PSU, Stainless Steel (NC941/SS)
SKU
NC941/SS
£145.04 £120.87

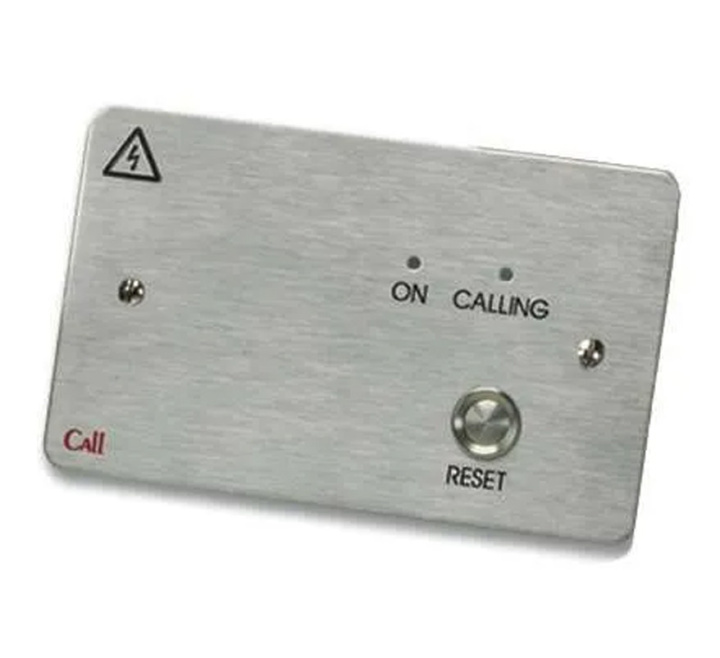

C-TEC NC941/SS Single Zone Call Controller c/w 12V PSU, Stainless Steel
The C-TEC NC941/SS is a high-quality single zone call controller that comes with a built-in 12V 250mA PSU. Manufactured from high-quality brushed stainless steel, this call controller is not only durable but also sleek and stylish.
Designed to work seamlessly with C-TEC's entire range of 800 Series Call System components, this controller is capable of indicating standard (constant tone) and emergency (intermittent tone) calls. It features Power On and Alarm 'CALLING' LEDs, which provide clear visual indication of call status.
The controller's onboard buzzer sounds an alarm when required, and an open collector output goes to 12V, ensuring that any connected devices are activated in case of an emergency.
Installation is a breeze, as this controller mounts on a standard UK 40mm double gang flush or surface back box. Additionally, an optional NC941B 0.3A battery backup kit is available for added peace of mind.
| Key Features |
|---|
| > Single Zone Call Controller > 12V 250mA PSU supplied > Brushed stainless steel > Compatible with C-TEC's 800 Series Call System components > Indicates standard and emergency calls > Power On and Alarm 'CALLING' LEDs > Open collector output goes to 12V when controller's onboard buzzer sounds > Mounts on standard UK 40mm double gang flush or surface back box |
| Manufacturer | C-TEC |
|---|---|
| MPN | NC941/SS |
| EAN | 5056059605906 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Dimensions: | W:156mm x H:94mm x D:37mm Mounts on standard 40mm UK double gang flush or surface back box. |
| Mains Supply: | 230V 50/60 Hz (36mA max. current) 50Hz frequency |
| Internal Power Supply: | 13 - 13.8V dc |
| Quiescent current: | 0mA |
| Total output current: | Limited to 250mA |
| Max. battery size & type: | Optional NC941B 12V 0.3Ahr battery back up kit available |
| Alarm current: | Determined by the number/type of field devices connected to the call controller/system |
| Indicators: | Red alarm LED; Green supply present LED |
| Auxiliary relays: | None |
| Open collector outputs: | 1 x output terminal (goes +12V steady when the controller's buzzer sounds). 20mA max. |
| Connections: | -ve (common -ve terminal for all devices); +ve (+12V nominal supply for powering emergency call points, overdoor lights etc); Signal (the trigger line that activates the NC941/SS) |
| Expansion connections: | Batt+ and Batt- (for connection to an optional remote NC941B battery back up kit) |
| Controls: | RESET button (can be disabled) |
| Call acknowledgement functionality: | No. If required, use NC943B plastic controller |
| Construction & finish: | Brushed stainless steel |
| Operating temperature: | -5oC to +40oC, 95% humidity non-condensing |
| IP Rating: | IP41 |
| Note: For flush mounting, a 47mm double gang steel back box, such as Appleby's SB628 or Mk's 878 ZIC, is suggested. For surface mounting, the MK K2212 ALM or 2212 ALM is suggested. | |
