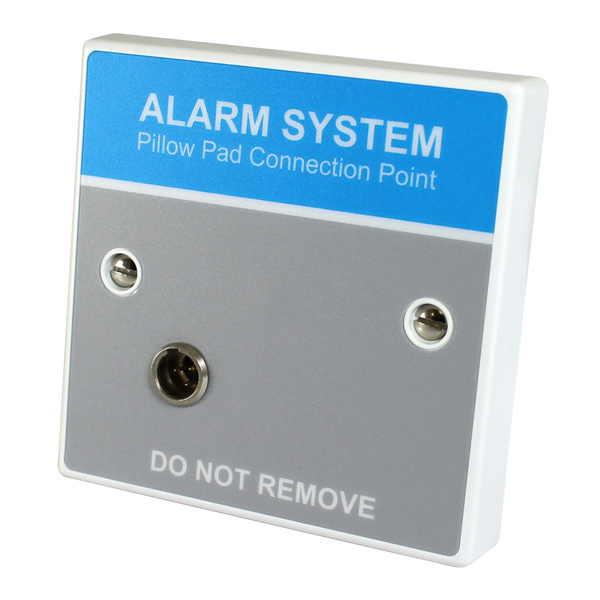

C-TEC Single Gang Locking Jack Socket for BF320 (BF320JP)
SKU
BF320JP
£22.43
£18.69
C-TEC Single Gang Locking Jack Socket for BF320 (BF320JP)
- Buy 10 for £21.58 £17.98 each and save 4%
Limited Stock
Product Details for C-TEC Single Gang Locking Jack Socket for BF320 (BF320JP)
The C-TEC XLR Connector Plate, part no. BF320JP, allows the separately available BF320 Vibrating Pillow Pad to be connected to 24Vd.c. conventional fire alarm sounder circuits, 12Vd.c. systems, or C-TEC’s EVAC Alert system. The BF320JP is also compatible with other commonly available third-party vibrating pillow pads.
Key Features of the BF320JP |
|---|
|
> Can be used in conjunction with a BF320 vibrating pillow pad to warn the hearing impaired of a potential fire alarm or evacuation alert condition.
> Compatible with all C-TEC fire alarm and evacuation alert systems. > Locking mini-XLR connector and plug arrangement helps prevent accidental pillow pad removal. > Line monitored for disconnection via an internal 6k8Ω end of line resistor (selectable at the BF320JP). > Selectable 6K8 (pillow pad) or 27K (jack socket) end of line monitoring options for fire alarm or evacuation alert system use. > Can be used on systems with a 10-30V DC voltage range > Fits on a standard UK 25mm back box. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | BF320JP |
Write Your Own Review
FAQ’s for C-TEC Single Gang Locking Jack Socket for BF320 (BF320JP)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC Single Gang Locking Jack Socket for BF320 (BF320JP)
| Compatibility | Designed for use with C-TEC's BF320 Vibrating Pillow Pad. |
| Application/operation | Connects across a conventional fire alarm system's 24V DC sounder circuit or across the circuits of a CA737 Four Way Flat Interface Unit on a C-TEC Evacuation Alert System. |
| Supply/operating voltage | 10-30V DC. |
| Alarm current | 65mA at 24V, 110mA 10V (when pressure pad connected). |
| Connections | +24V and 0V. |
| Product dimensions (mm) | 86 W x 86 H x D 15mm. Can be mounted on a standard UK 25mm single gang flush or surface back box. |
| Construction & finish | PVC White RAL90003. Grey/blue label. |
| Weight | 56g. |
| Operating conditions/temperature | -10ºC to +60ºC. |
| Notes | On a C-TEC Evac-Alert System, power for the BF320JP should be derived from a mains powered CA737 Four Way Flat Interface Unit. See instructions for end of line monitoring options. |
