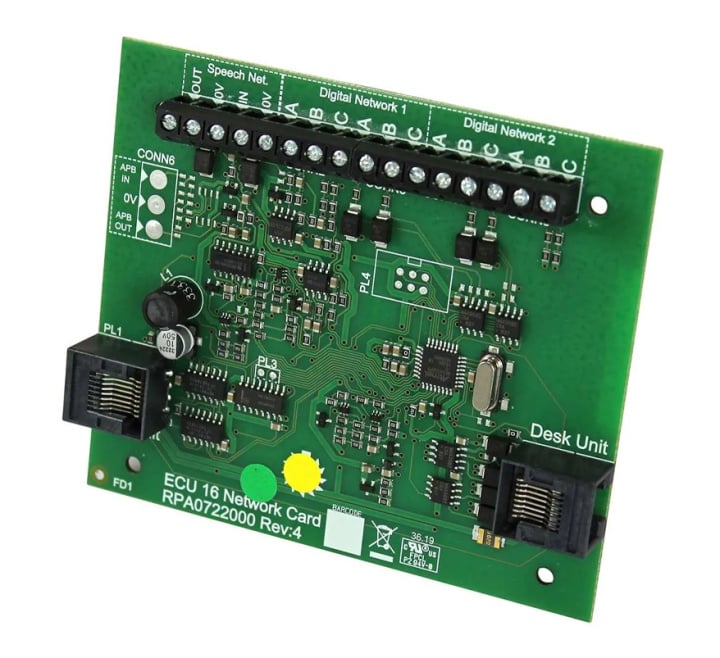

C-TEC SigTEL Interface/Network Communication Card (ECU723)
SKU
ECU723
£91.82
£76.52
C-TEC ECU723 SigTEL Interface/Network Communication Card
- Buy 10 for £88.30 £73.58 each and save 4%
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for C-TEC SigTEL Interface/Network Communication Card (ECU723)
The C-TEC ECU723 is an optional system expansion device designed to simplify call handling on larger SigTEL applications. It allows for an ECU-224 desk controller to be connected to an ECU-4, 8 or 16 SigTEL controller. The device mounts inside an ECU-4, 8 or 16 and can also be used to network the ECU-4, 8 or 16 to another controller if required. It's important to note that the C-TEC ECU723 is not compatible with ECU-8NT controllers.
Key Features of the ECU723 |
|---|
|
> Optional system expansion device
> Allows an ECU-224 desk controller to be connected to an ECU-4/8/16 SigTEL controller > Simplifies call handling on larger SigTEL applications |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | ECU723 |
Write Your Own Review
FAQ’s for C-TEC SigTEL Interface/Network Communication Card (ECU723)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC SigTEL Interface/Network Communication Card (ECU723)
| Dimensions: |
W:92mm x H:108mm x D:20mm |
| Network Connection: | Cat 5 patch lead (supplied) connects the ECU723 to a master controller. The ECU-224 desk controller also connects to the ECU723 via a Cat 5 lead |
| Network specification: | The ECU723 card transmits speech via a single wiring loop and digital data via two linear RS485 networks. The network should be connected using 4 x 2 core 1.5m2 enhanced fire-rated cable. |
| Weight: | 56g |
| Notes: It is recommended two separate cable paths be run with each path containing a single speech and single data cable (which should not be mixed in the same cable). See ECU-4/8/16 Instructions | |
