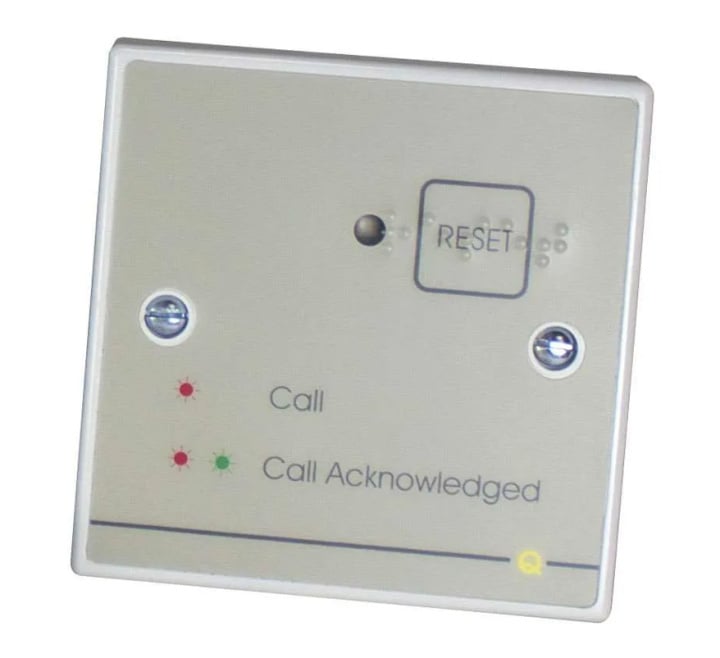

C-TEC Quantec Accessible Toilet Reset Point with Confidence Sounder (QT605S)
- Buy 10 for £30.36 £25.30 each and save 4%
Product Details for C-TEC Quantec Accessible Toilet Reset Point with Confidence Sounder (QT605S)
The C-TEC QT605S is an addressable reset point device designed for use in accessible toilet alarm applications compliant with BS8300 regulations. Equipped with a confidence sounder and a red/green reassurance LED, it features a RESET button with Braille text for cancelling calls.
It can be easily integrated with a Quantec ceiling pull (installed inside the WC) and a slave overdoor light c/w sounder (installed outside the WC). The device produces a standard call tone when its slave ceiling pull is activated and an intermittent ‘call acknowledgement’ tone when the call is accepted at a Quantec display, providing users with reassurance that help is on the way.
Additionally, it is also available as part of the QT951 Accessible Toilet Alarm kit.
Key Features of the QT605S |
|---|
|
> Quantec addressable accessible toilet reset point
> with Confidence Sounder > For use in BS8300 compliant accessible toilet alarm applications > Red/green reassurance LED > Reset button with Braille for cancelling calls > Can be interfaced to ceiling pull (installed inside WC) and slave overdoor light (installed outside WC) > Generates Standard call tone when slave ceiling pull is activated > Intermittent 'call acknowledgement' tone when call accepted at Quantec display > Lets users know help is on the way |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | QT605S |
FAQ’s for C-TEC Quantec Accessible Toilet Reset Point with Confidence Sounder (QT605S)
Product Specification for C-TEC Quantec Accessible Toilet Reset Point with Confidence Sounder (QT605S)
| Dimensions: |
W:87mm x H:87mm x D:23mm Can be mounted on standard UK 25mm single gang flush/surface back box |
| Power requirements: | Nominal 24V DC (from Quantec Controller/Network) |
| Quiescent current: | Less than 5mA |
| Indicators: | Red/Green confidence LED |
| Controls: | Reset button |
| Connections: | Net +; Net -; R (red); G (green); L+ (Local positive); SW (switch) |
| Expansion connections: | R, G, L+ and SW terminals allow connection of a slave ceiling pull and slave overdoor c/w sounder |
| Onboard 6.35mm Remote Jack Socket | No |
| Onboard Infrared Receiver: |
No |
| Onboard sounder: | Yes - sounds Quantec's standard call tone when its slave ceiling pull is activated and a slow intermittent tone when the call is Accepted at a Quantec display |
| IP Rating: | IP40 |
| Construction & finish: | Plastic |
| Operating temperature: | -5oC to +40oC max humidity 95% |
| Weight: | 66g |
