SKU
BF446A/CX/DR
£70.78 £58.98

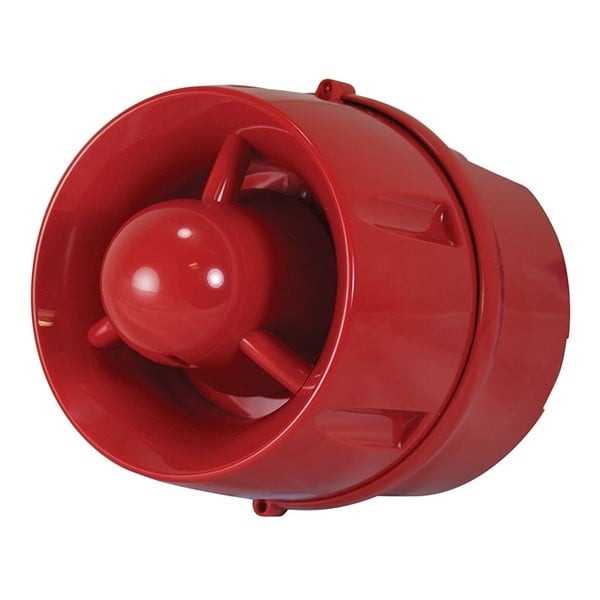

C-TEC Hi-Output Wall Voice Sounder - Deep - Red (XP95/Discovery Compatible) (BF446A/CX/DR)
The C-TEC BF446A/CX/DR is an addressable, loop-powered voice sounder with a deep base which is designed to be wall mounted. It is compatible with XP95/Discovery protocol loops and designed for use with C-TEC's XFP and ZFP fire panels.
The Hi-Output range of addressable, loop-powered, devices includes voice sounders and combined voice sounder visual alarm devices (VADs). Their purpose is to visually and audibly alert building occupants of a fire alarm. They are designed for use with C-TEC’s ZFP and XFP Apollo Discovery protocol panels and other third-party Apollo Discovery protocol panels. However, compatibility testing with third-party panels is recommended to ensure correct operation.
With a 100 dB(A) sound output @ 1 m, units are supplied with a shallow or deep base, in a red plastic enclosure.
The devices offer low current consumption, high sound output, high efficiency VADs, seven selectable volume levels, 15 selectable tone pairs and built-in short-circuit loop isolators.
The sounder and VAD on the combined device can be set to operate independently of each other (panel dependent function).
All devices are designed to comply with all relevant sections of the fire alarm device standards EN 54-3 (Sounders), EN 54-23 (Visual alarm devices - VADs) and EN 54-17 (Short-circuit isolators).
Key Features |
---|
> Superb sound intelligibility. > Includes three selectable voice message pairs. > Includes the same electronics as our EN54-3 & 17 certified wall sounder. > Onboard short-circuit loop isolator. > 550µA quiescent current. > 10mA alarm current @24V DC (voice sounder on max). > Group addressing facility allows multiple devices to be operated simultaneously. > 7 selectable volume levels and up to 15 selectable tone pairs. > IP33C (Type B) rated. |
Manufacturer | C-TEC |
---|---|
MPN | BF446A/CX/DR |
EAN | 5056059601335 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Protocol/compatibility | Compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. |
Application/operation | Designed to be wall mounted. Indoor areas only. |
VAD category & coverage | n/a |
Flash rate & colour | n/a |
Supply/operating voltage | 17 to 28V DC |
Quiescent current | 550µA @ 24 VDC. |
Alarm current | 10mA (Voice Sounder on max). |
Indicators | Polling (green LED) & Short Circuit Isolator Active (amber LED). |
Product dimensions (mm) | 114mm diameter x 131mm deep. |
IP Rating | IP33C (Type B). |
Weight | 300g. |
Operating conditions/temperature | -10ºC to +55ºC. Max. 95% RH (Non-condensing). |
Notes | Includes the same electronics as our EN54-3 & 17 certified Hi-Output Sounder. |
