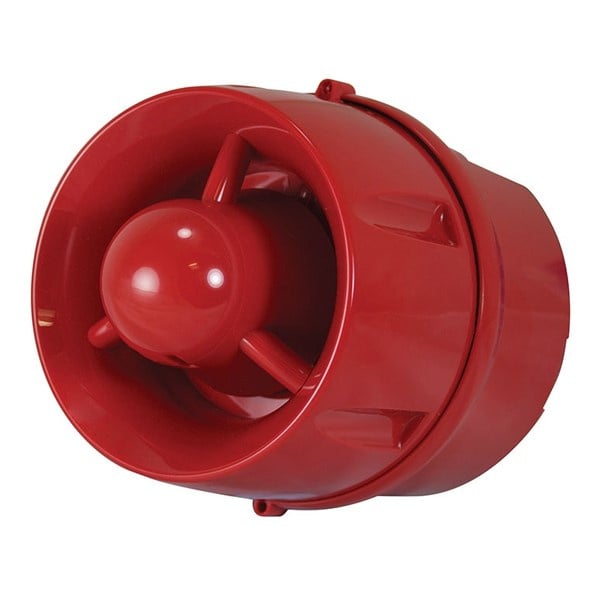

C-TEC Hi-Output 103dB Wall Sounder - Deep - Red (XP95/Discovery Compatible) (BF430A/CX/DR)
- Buy 10 for £37.37 £31.14 each and save 4%
Product Details for C-TEC Hi-Output 103dB Wall Sounder - Deep - Red (XP95/Discovery Compatible) (BF430A/CX/DR)
The C-TEC BF430A/CX/DR is an addressable high output 103dB wall sounder in red which is compatible with C-TEC's range of XFP and ZFP fire panels running Apollo XP95/Discovery protocol. It comes complete with a deep mounting base.
The Hi-Output range of addressable, loop-powered devices includes sounders and combined sounder visual alarm devices (VADs).
They are designed for use with C-TEC’s ZFP/XFP panels and other Apollo Discovery compatible fire panels.
With a 103 dB(A) sound output @ 1 m, their purpose is to visually and audibly alert building occupants of a fire alarm. Units are supplied with either a shallow or deep base, in a red plastic enclosure.
The devices offer low current consumption, high sound output, high efficiency VADs, seven selectable volume levels, 15 selectable tone pairs and built-in short-circuit loop isolators.
The sounder and VAD on the combined device can be set to operate independently of each other (panel dependent function).
All devices are fully certified with all relevant sections of the fire alarm device standards EN 54-3 (Sounders), EN 54-23 (Visual alarm devices - VADs) and EN 54-17 (Short-circuit isolators).
Key Features of the BF430A/CX/DR |
|---|
|
> Third-party certified to EN54-3 (Sounders) and 17 (Isolators) by the LPCB.
> Impressive 103dB(A) sound output @ 1m. > Onboard short-circuit loop isolator. > 550µA quiescent current. > 5mA alarm current @24V DC (sounder on max). > Group addressing facility allows multiple devices to be operated simultaneously. > 7 selectable volume levels and up to 15 selectable tone pairs. > IP33C (Type A) rated. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | BF430A/CX/DR |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery |
| Warranty | 1 Year |
FAQ’s for C-TEC Hi-Output 103dB Wall Sounder - Deep - Red (XP95/Discovery Compatible) (BF430A/CX/DR)
Product Specification for C-TEC Hi-Output 103dB Wall Sounder - Deep - Red (XP95/Discovery Compatible) (BF430A/CX/DR)
| Approvals/certifications | Certified to EN54-3 & 17 by the LPCB. |
| Protocol/compatibility | Compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. |
| Application/operation | Designed to be wall mounted. IP33C rated and suitable for use outdoors (note an IP65 rated Sounder VAD version is also available). |
| VAD category & coverage | n/a |
| Flash rate & colour | n/a |
| Supply/operating voltage | 17 to 28V DC |
| Quiescent current | 550µA @ 24 VDC. |
| Nominal SPL (Sound Pressure Level) | 103dB(A) when set to tone 1. |
| Alarm current | 5mA (Sounder on max). |
| Indicators | Polling (green LED) & Short Circuit Isolator Active (amber LED). |
| Product dimensions (mm) | 114mm diameter x 131mm deep. |
| IP Rating | IP33C (Type A). |
| Weight | 300g. |
| Operating conditions/temperature | -10ºC to +55ºC. Max. 95% RH (Non-condensing). |
