Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

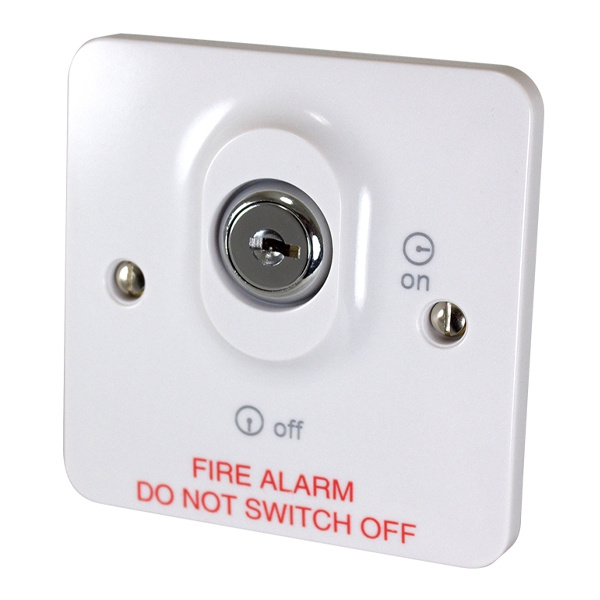

C-TEC Fire Alarm Mains Isolator Keyswitch (BF319)
Discontinued
Alternative Products
Product Details for C-TEC Fire Alarm Mains Isolator Keyswitch (BF319)
The C-TEC BF319 is a high quality double pole (switches both live and neutral supply) fire alarm control panel mains isolator keyswitch. It is ideal for use during routine maintenance on the fire alarm panel such as battery tests and replacement of the main PCB etc. The BF319 fits onto a standard UK 47mm flush or surface mount back box and comes supplied with 2 x M3.5 25mm fixing screws.
Key Features of the BF319 |
|---|
|
> A high-quality lockable double pole Fire Alarm Control Panel Mains Keyswitch.
> Allows the Mains supply to a fire alarm panel to be switched on or off in accordance with BS 5839-1. > Ideal for use during routine test and maintenance (e.g. battery test, main board replacement etc). Note, if working on the Mains in the panel you must also follow correct practice and isolate the Mains supply at the distribution board. > Fits on a standard UK 47mm flush or surface mount back box. > Supplied with 2 x M3.5 25mm fixing screws. > BS EN60669-1 compliant. > Always read the full installation and operating instructions supplied with the unit before use. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | BF319 |
FAQ’s for C-TEC Fire Alarm Mains Isolator Keyswitch (BF319)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC Fire Alarm Mains Isolator Keyswitch (BF319)
| Approvals/Certifications | Compliant with BS EN60669-1 (Switches for household and similar fixed-electrical installations, General Requirements) |
| Type: | Double pole, lockable. 20AX, 250V, 50/60Hz. |
| Connections: | L1 and N1 IN; L2 and N2 OUT |
| Product Dimensions: | 87 W x 87 H x D 44mm (Can be mounted on a standard UK 47mm single gang flush or surface back box). |
| Construction & Finish: | White moulded polycarbonate |
| IP Rating: | IP20 |
| Weight: | 150g |
| Operating Conditions/Temperature: | -10°C to 60°C |
| Notes: | When the BF319 is in the off position, you can safely perform routine maintenance tasks at the fire panel (battery test, main board replacement etc). To work on the Mains in the panel you MUST also isolate the Mains supply at the distribution board. |
