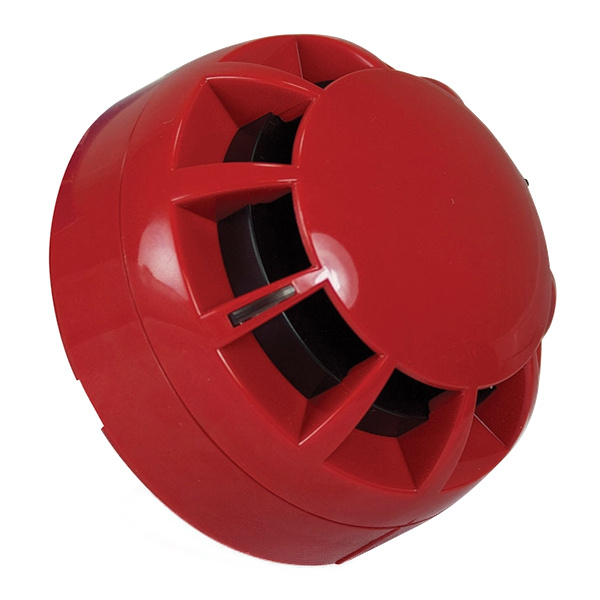

C-TEC Compact 91dB Wall Sounder - Red (XP95/Discovery Compatible) (BF450A/CX/SR)
- Buy 10 for £29.89 £24.91 each and save 4%
Product Details for C-TEC Compact 91dB Wall Sounder - Red (XP95/Discovery Compatible) (BF450A/CX/SR)
The C-TEC BF450A/CX/SR is a compact addressable loop-powered wall sounder in red. It is compatible with XP95/Discovery protocol systems and designed for use with C-TEC's XFP and ZFP fire panels.
The Compact range of addressable, looppowered, devices include sounders, visual alarm devices (VADs) and combined sounder VADs. They are designed for indoor use with C-TEC’s ZFP/XFP and other Apollo Discovery compatible fire panels.
Their purpose is to visually and audibly alert building occupants of a fire alarm.
The devices offer low current consumption, high sound output, high efficiency VADs, seven selectable volume levels, 15 selectable tone pairs and built-in short-circuit loop isolators.
The sounder and VAD on the combined device can be set to operate independently of each other (panel dependent function).
All devices are fully compliant with the relevant sections of the fire alarm device standards EN 54-3 (Sounders), EN 54-23 (Visual alarm devices - VADs) and EN 54-17 (Short-circuit isolators).
Key Features of the BF450A/CX/SR |
|---|
|
> Third-party certified to EN54-3 (Sounders) and 17 (Isolators) by Intertek.
> Impressive 91dB(A) sound output @ 1m. > Onboard short-circuit loop isolator. > 550µA quiescent current. > 5mA alarm current @24V DC (VAD lit, sounder on max). > Group addressing facility allows multiple devices to be operated simultaneously. > 7 selectable volume levels and up to 15 selectable tone pairs. > IP21C rated. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | BF450A/CX/SR |
| Colour | Red |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery |
| Warranty | 1 Year |
FAQ’s for C-TEC Compact 91dB Wall Sounder - Red (XP95/Discovery Compatible) (BF450A/CX/SR)
Product Specification for C-TEC Compact 91dB Wall Sounder - Red (XP95/Discovery Compatible) (BF450A/CX/SR)
| Approvals/certifications | Certified to EN54-3 & 17 by Intertek. |
| Protocol/compatibility | Compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. |
| Application/operation | Suitable for wall or ceiling mounting. |
| Supply/operating voltage | 17 to 28V DC |
| Quiescent current | 550µA @ 24 VDC. |
| Nominal SPL (Sound Pressure Level) | 91dB(A) when set to tone 1. |
| Alarm current | 5mA alarm current @24V DC (sounder on max). |
| Indicators | Polling (green LED) & Short Circuit Isolator Active (amber LED). |
| Product dimensions (mm) | 102mm diameter x 58mm deep. |
| Construction & finish | Red |
| IP Rating | IP21C (Type A). |
| Weight | 160g. |
| Operating conditions/temperature | -10ºC to +55ºC. Max. 95% RH (Non-condensing). |
